    Machine Tool Oil Mist Separator
    oil mist collector
    Machine Tool Oil Mist Separator
    The mechanical oil mist purifier is an industrial environmental protection device. It adopts physical mechanical separation to efficiently capture oil mist, smoke, water mist and fine particles from production.
    Suitable for CNC machine tools, grinders, lathes, metal cutting, food processing and other machining industries. It improves workshop air quality, protects workers’ health, reduces oil mist-induced equipment wear, and helps enterprises lower environmental pollution.
    Whatsapp
    • Product Details
     Machine Tool Oil Mist Separator  HK-A



    •Application Scenarios: CNC machining centers, grinding machines, grinding equipment and other machining occasions

    •Purification Efficiency: 80%~98%

    •Purification Principle: Pre-filter + HEPA filter element

    •Installation Method: Top mounting on equipment / Bracket fixed mounting

    •Maintenance Method: Replace pre-filter cotton + Replace HEPA filter element

    •Maintenance Cycle: 6~12 months

    •Cleaning Method: Non-cleanable

    •Optional Accessories: Customizable fixed bracket

    •Exhaust Gas Temperature: ＜45℃

    ▲ For reference only, subject to actual working conditions

    		油雾净化器

    ■Product Introduction

    The mechanical oil mist purifier is an industrial environmental protection device. It adopts physical mechanical separation to efficiently capture oil mist, smoke, water mist and fine particles from production.

    Suitable for CNC machine tools, grinders, lathes, metal cutting, food processing and other machining industries. It improves workshop air quality, protects workers’ health, reduces oil mist-induced equipment wear, and helps enterprises lower environmental pollution.

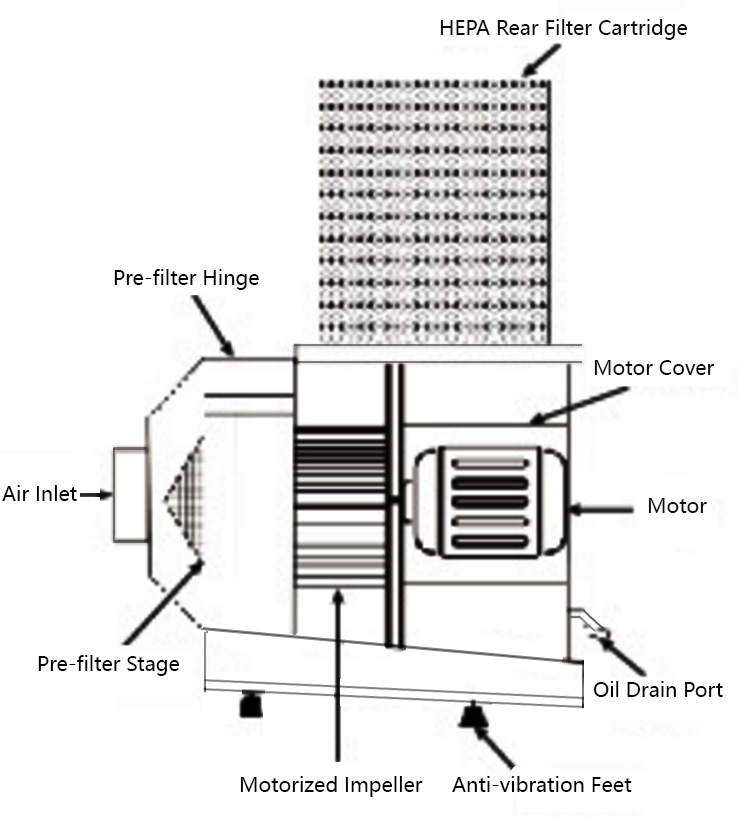

    ■ Working Principle

    Air contaminated by machine tools is drawn into the pretreatment chamber at the bottom of the unit. The rotating turbine uses centrifugal force and coalescence principle to rapidly condense oil mist into liquid oil. Multi-layer high-efficiency filter cotton captures fine particles and prevents pollutants from spreading in the workshop. The oil drain pipe at the bottom returns the collected oil to the machine tool for recycling.

    		未标题-1

    ■ Scope of Application

    This unit is applicable for the filtration and purification of oil mist, water mist, smoke and dust in industries including CNC lathes, grinding machines, machining centers, gear hobbing machines, gear grinding machines, medium and high-frequency cold & hot forming, and plastic products processing.


    ■Characteristics

    Inclined sunken oil collection designElectromechanical Separation DesignUnique Turbine DesignFully Upgraded Filter Element
    The design allows collected oil mist to naturally flow downwards and converge at the low point, then drain out through the oil guide pipe. It thoroughly avoids oil dirt accumulation at the bottom, keeps the whole machine clean, and improves maintenance efficiency and overall usability.Adopting an electromechanical separation design, the motor is fully exposed for adequate heat dissipation. It also reduces vibration and noise, optimizing overall performance while greatly enhancing the equipment’s appearance and texture.Adopting a unique turbine design, its air intake volume per second is more than doubled compared with similar products under the same power. The powerful air flow greatly boosts purification efficiency.Fully upgraded in material, craftsmanship, filtration area and pleat layers, the filter element can intercept smoke particles and pollutants as small as 0.2μm, deeply remove hydrocarbon chemicals, and its service life is more than doubled compared with similar products.

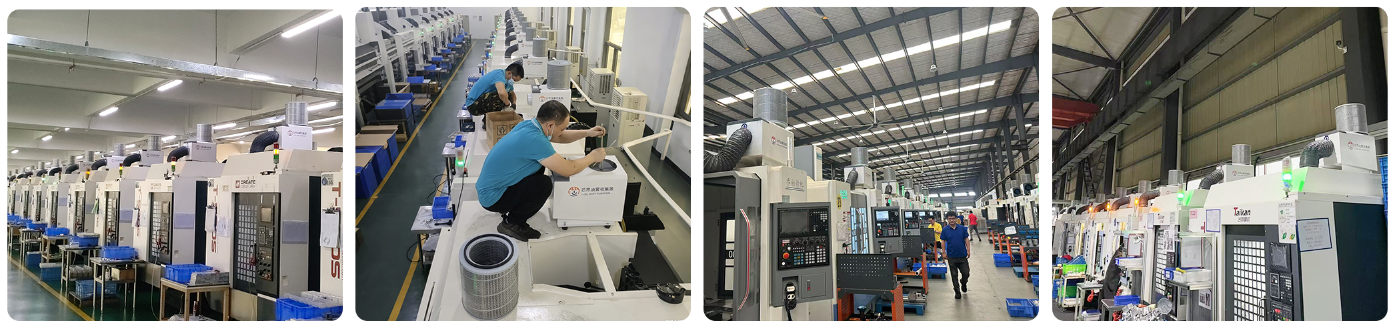

    ■On-site Installation


    ■ TECHNICAL PARAMETERS

    ModelHK-37AHK-75AHK-110AHK-150AHK-220A
    Airflow dealer800-10001100-14001400-16001700-19002200-2500
    Outlet diameter（mm）110150150150150
    Power（W)370750110015002200
    Voltage（V）380380380380380
    Measure（L*W*H)530*310*700
    		530*320*710530*320*710620*390*840620*390*840

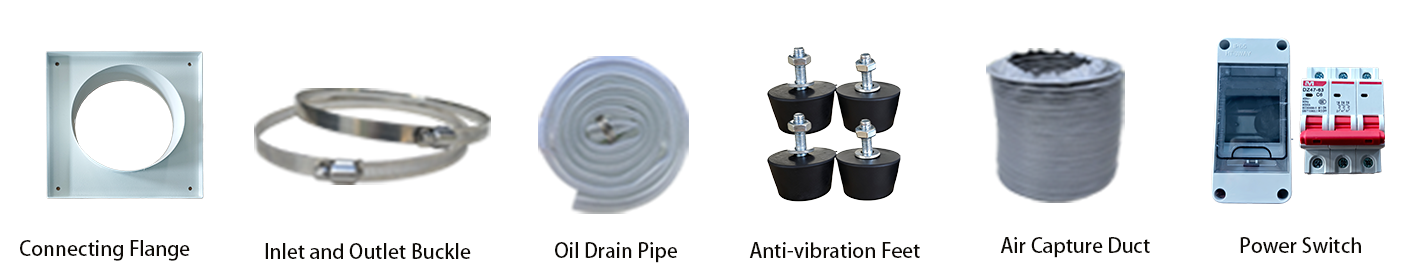

    Accessory Listimage

    Note: Our company continuously researches and improves product specifications and designs. Any changes to the above specifications are subject to change without prior notice.

    ■ Product Overall Dimensions



    Unit: Millimeter (mm)

    ※ The above product appearance and dimensions are for reference only. Slight differences may exist in the actual product, which will not affect the use effect. Please take the physical product as the standard.
