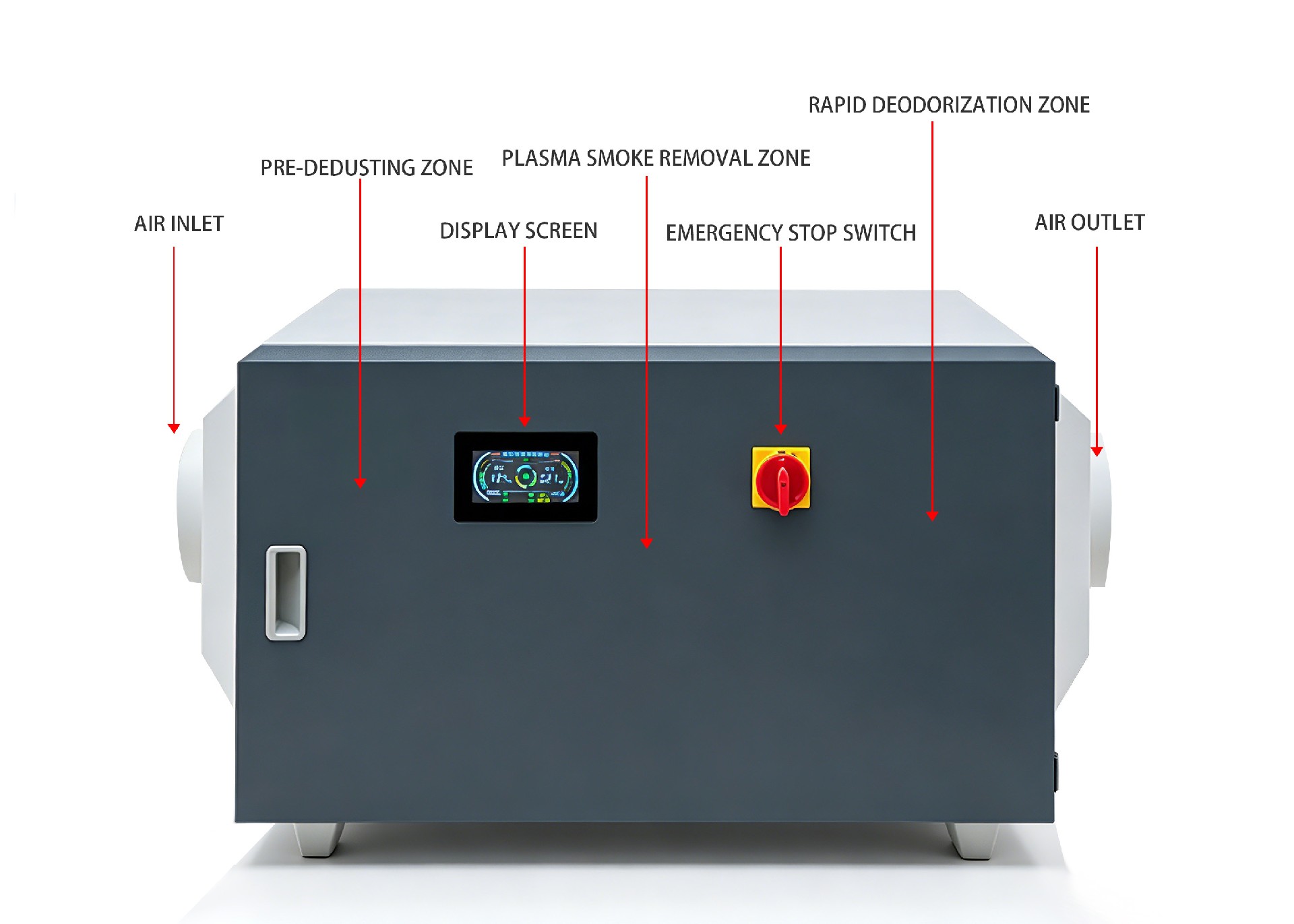

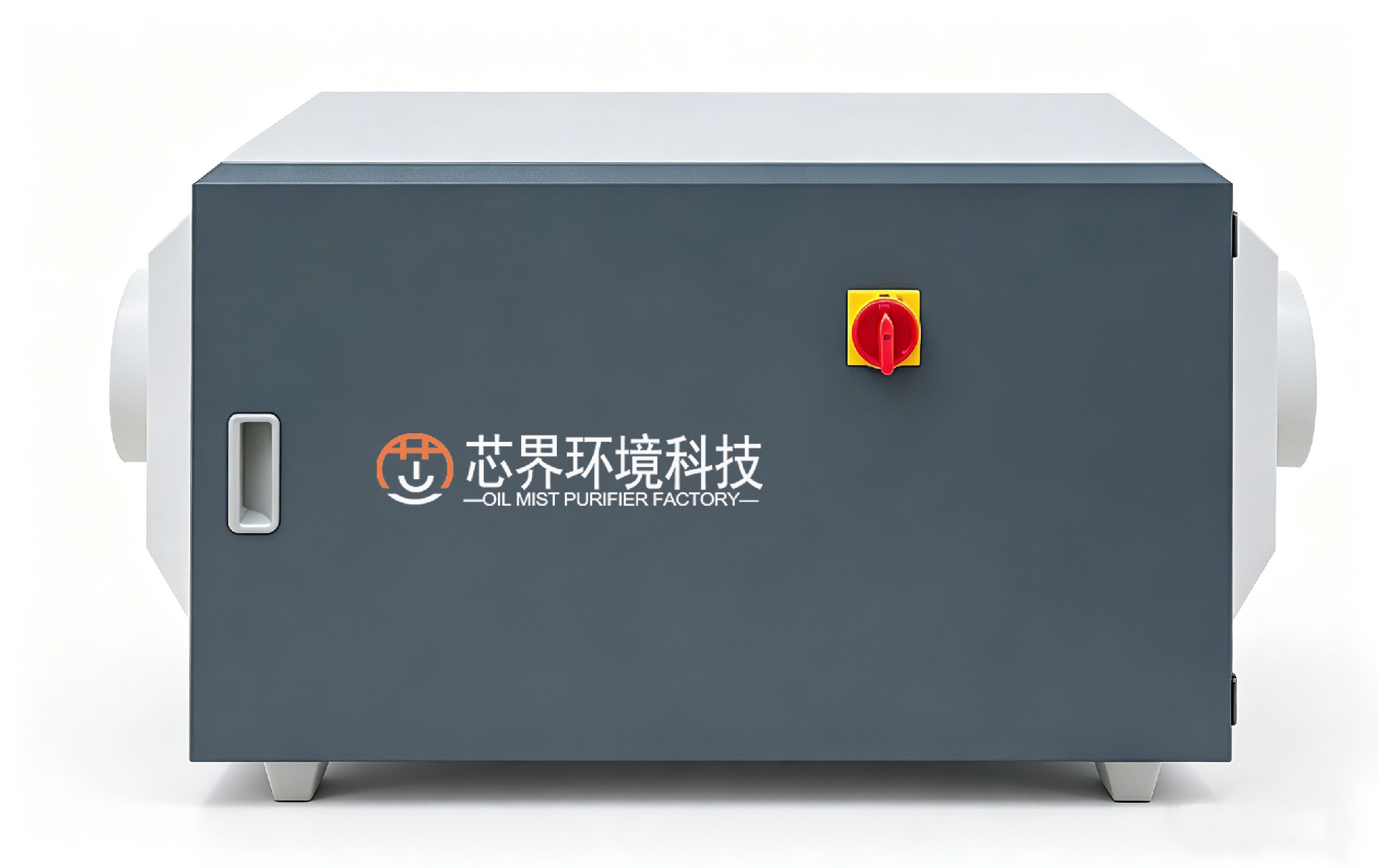

Scheme 1 (Electrostatic Pure Electric Field):

The horizontal smoke purifier is based on the principle of electrostatic adsorption. Through the dual effects of "high-voltage ionization + low-voltage adsorption and dust collection", it efficiently captures and purifies pollutants such as smoke, oil fume, dust and aerosols in industrial, commercial and household environments. The equipment has three characteristics: high efficiency and energy saving, easy maintenance and wide applicability, which can accurately match the purification needs of multiple scenarios.

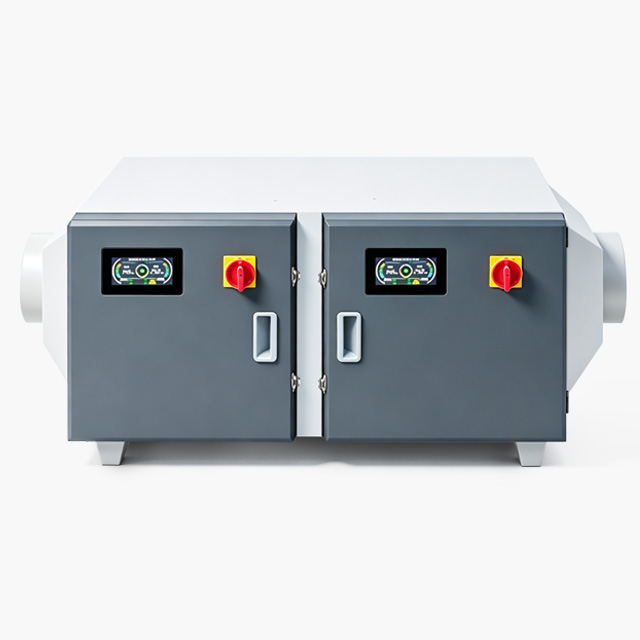

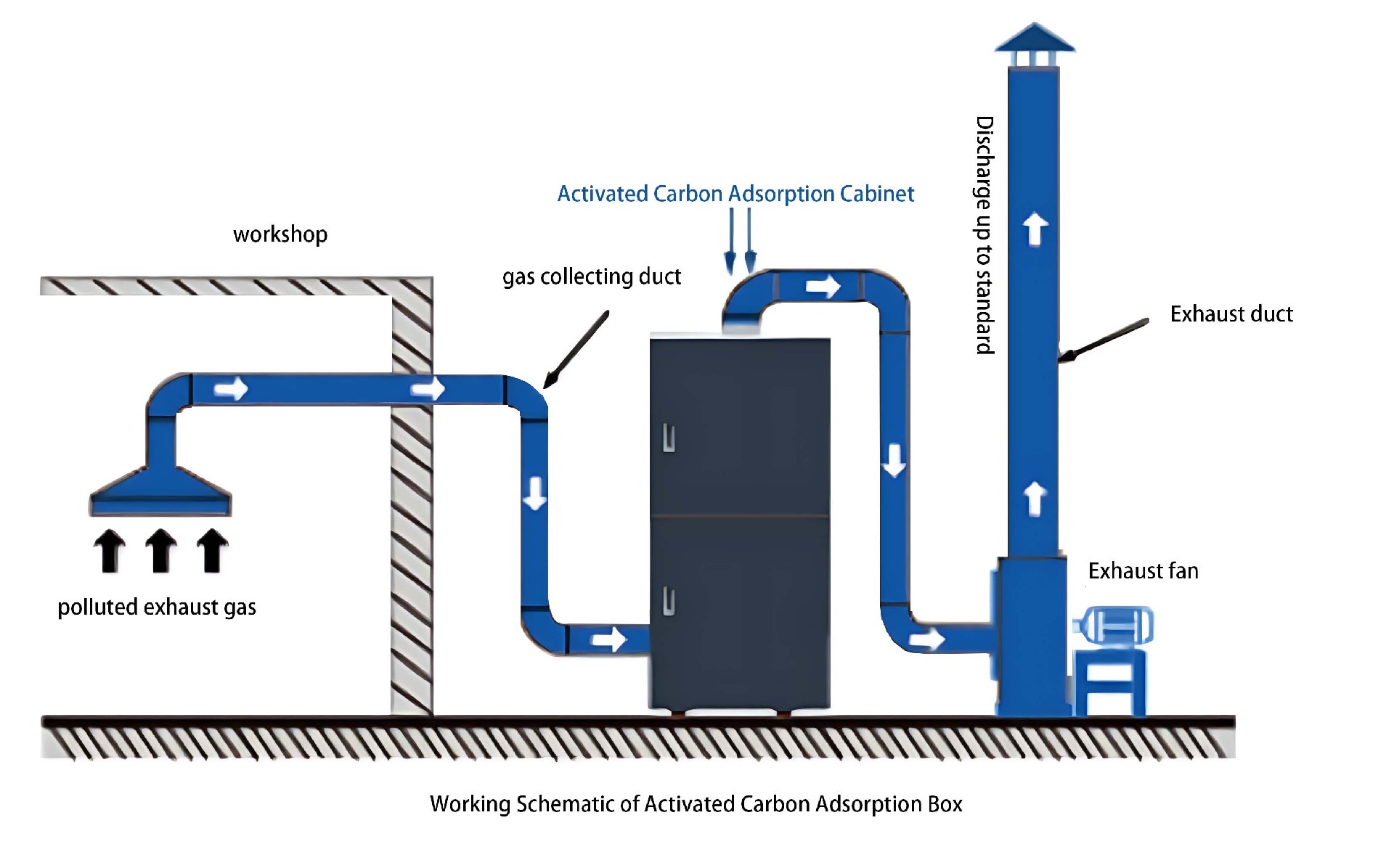

Scheme 2 (Activated Carbon Adsorption Box):

This equipment is a high-efficiency waste gas treatment equipment integrating three core technologies: primary filter layer, plasma electric field purification and activated carbon adsorption layer. It can efficiently remove smoke, peculiar smell and volatile organic compounds (VOCs); It adopts modular design to realize multi-level purification, which is accurately suitable for scenarios such as welding workshops, chemical plants and printing workshops, quickly treats smoke and organic waste gas, and effectively improves the air quality of the operating environment.

Scheme 3 (UV Photolysis Deodorizer):

This equipment is an air purification equipment based on ultraviolet (UV) photolysis technology and photocatalytic oxidation principle, which can efficiently degrade peculiar smell, volatile organic compounds (VOCs) and various harmful gases. It deeply decomposes pollutants through photochemical reaction, realizing multiple effects of air deodorization, sterilization and purification. It is an efficient and green air purification technology, widely used in the treatment of irritating gases in industries such as industrial manufacturing, chemical and pharmaceutical industries, providing a reliable solution for enterprises to solve the problem of harmful gases.

Application scenarios: Machining centers, CNC milling machines, grinders, EDM and other horizontal processing equipment.

Filtration efficiency: 80% ~ 99%

Purification principle: Primary filtration + plasma electric field

Installation method: Centralized ducted installation, or indoor/outdoor floor-mounted installation

Maintenance method: Clean the electric field and filter screen

Maintenance cycle: 200 ~ 600 hours

Cleaning method: Soak in warm water with cleaning solution for 30 minutes, then rinse with clean water and air dry

Optional accessories: Matched with fan for use; customized bracket available

Exhaust gas temperature: ＜70℃▲ For reference only, subject to actual working conditions.

• Application Scenarios: Laser cutting, spraying workshops, fastener cold heading machines, heat treatment and other horizontal processing equipment

• Filtration Efficiency: 80%~99%

• Purification Principle: Primary filtration + plasma electric field + honeycomb activated carbon

• Installation Method: Top mounting / bracket mounting

• Maintenance Method: Clean the electric field and filter screen; replace activated carbon regularly

• Maintenance Cycle: 200~600 hours

• Cleaning Method: Soak in warm water with cleaning solution for 30 minutes, then rinse with clean water and air dry naturally

• Optional Accessories: Equipped with matched fan; customized bracket available

• Exhaust Gas Temperature: ＜70℃▲ For reference only, subject to actual working conditions.

• Application Scenarios: Spraying workshops, printing houses, rubber and plastic industries, hospitals, laboratories and other places.

• Filtration Efficiency: 80%~99%

• Purification Principle: Primary filtration + UV photoxygen lamp

• Installation Method: Top mounting / bracket mounting

• Maintenance Method: The UV photoxygen lamp is replaceable and requires regular maintenance.

• Maintenance Cycle: The design service life of UV photoxygen lamp is 10000~13000 hours.

• Cleaning Method: Soak in warm water diluted with cleaning solution for 30 minutes, then rinse with clean water and air dry.

• Optional Accessories: To be used with a matched fan; customized brackets are available.

• Exhaust Gas Temperature: ＜70℃
