Electrostatic Oil Mist Purifier（Centralized）

oil mist collector

Electrostatic Oil Mist Purifier（Centralized）

This multi-functional, entry-level, small-sized nebulizer is an economical and safe option for a small and clean working environment. It can be easily installed on the top of the equipment or on the floor beside it.

拨打电话

产品详情

Electrostatic Oil Mist Purifier

Centralized

■ Product Introduction

The smoke purifier is based on the principle of electrostatic adsorption. Through the dual action of "high-voltage ionization + low-voltage adsorption dust collection", it efficiently captures and purifies pollutants such as smoke, oil fume, dust, and aerosols in industrial, commercial, and household environments. Featuring three major advantages of high efficiency and energy saving, easy maintenance, and wide applicability, the equipment can accurately meet purification needs in multiple scenarios.

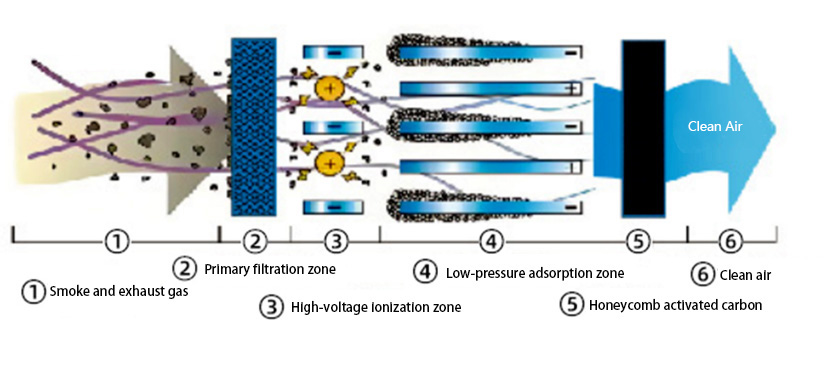

■ OPERATING PRINCIPLE

This product achieves three-level collaborative purification through "primary filtration → plasma electric field → honeycomb activated carbon". The smoke and exhaust gas first passes through a pre-filter to intercept dust and other particulate matter, while also balancing the airflow. The remaining small-sized pollutants enter the plasma electric field, where they are charged by the high-voltage ionization zone above 12KV, and then collected by the adsorption electrodes in the 200-800V low-voltage zone. Finally, they are adsorbed by the honeycomb activated carbon (with well-developed pores and a large specific surface area) to remove VOCs, benzene, hydrogen sulfide, ammonia and other unpleasant odors, and the clean air is finally discharged from the outlet.

■ Smoke and Exhaust Gas Purification Process

Firstly, the air passes through the pre-filter to intercept dust and other particulate matter and balance the airflow.
Then it enters the high-voltage ionization zone above 12KV, charging particulate matter such as smoke and oil mist.
Next, it flows through the 200~800V low-voltage adsorption zone; charged particles are adsorbed onto the surface of the dust collection plate, separating aerosols from air, and clean air is discharged finally.

■ Characteristics

Efficient purification	lower the cost	Reduce energy consumption	Customizable
It has high purification efficiency for particles ranging from 0.1 to 10 μm, and is particularly suitable for purifying ultrafine particles.	The plasma field can be washed and reused, eliminating the need for frequent replacement of consumables and significantly reducing the usage cost.	Electrostatic adsorption requires no high wind pressure, with energy consumption only 1/3~1/2 of traditional filtration equipment.	Easy to install and maintain; air volume can be customized according to actual needs with strong adaptability.

■ Full range of models for different requirements.

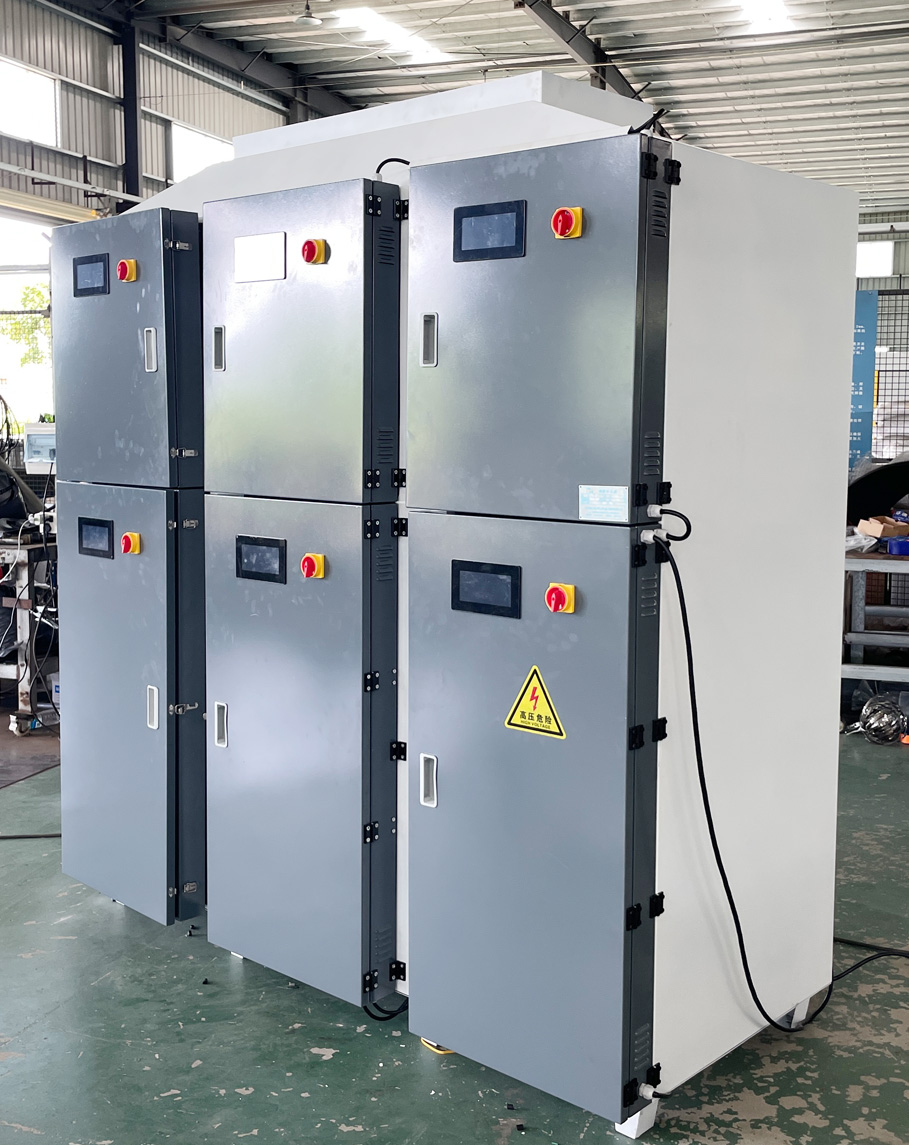

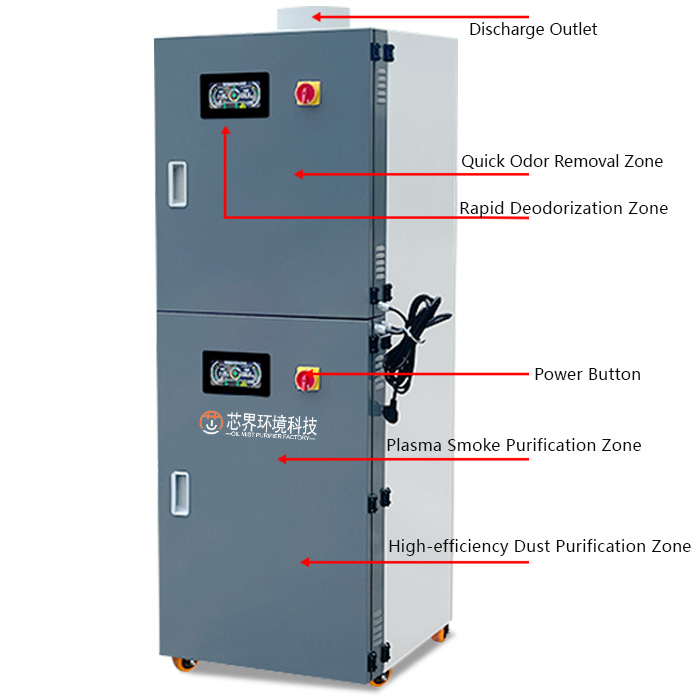

Centralized Purification of Electrostatic Oil Mist Purifier

Vertical Cabinet Type

High-efficiency & thorough purification: It can rapidly decompose odor molecules (such as hydrogen sulfide, ammonia) and VOCs (formaldehyde, benzene series, etc.). Particulates are charged by high-voltage ionization and captured by electrode plates in the low-voltage zone, delivering excellent purification efficiency.
Safe, economical and consumable-free: No chemical additives required; the unit operates only with electricity with no risk of flammability and explosion. Almost no consumables are needed, only UV lamps require regular replacement, greatly lowering operating costs.
Automatic operation with effortless maintenance: It supports continuous or intermittent operation and realizes automatic oil drainage. No full-time attendant is required. It features simple operation, convenient later maintenance and low running cost.
Wide compatibility and flexible installation: Suitable for CNC machine tools, machining centers, grinders and other industrial equipment. With compact structure and flexible installation, it will not affect normal workshop production.

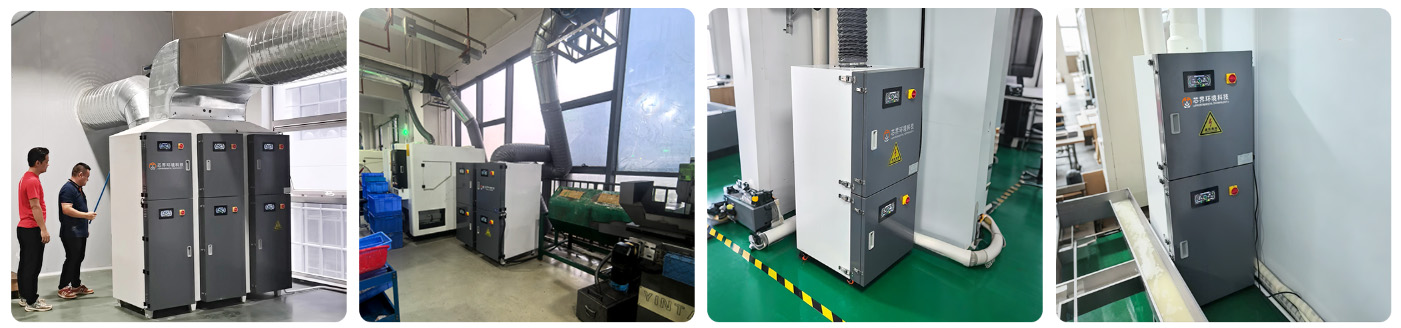

■ On-site Installation

■ TECHNICAL PARAMETERS

Model	FQ-1C	FQ-2C	FQ-3C	FQ-4C	FQ-5C	FQ-6C
Airflow dealer	2000-4000	4000-5000	5000-7000	9000-11000	14000-16000	18000-22000
Filter efficiency	80%-99%	80%-99%	80%-99%	80%-99%	80%-99%	80%-99%
Power（W)	500	750	1000	1400	2100	2800
Voltage（V）	200/380V	200/380V	200/380V	200/380V	200/380V	200/380V
Outlet diameter（mm）	≤200	≤200	≤200	≤200	≤300	≤300
Measure（LWH)	5506251030	5506251310	5506251600	5508651630	11708651460	11708651760
Performance consumables	Consumable-free

■ Full range of models for different requirements

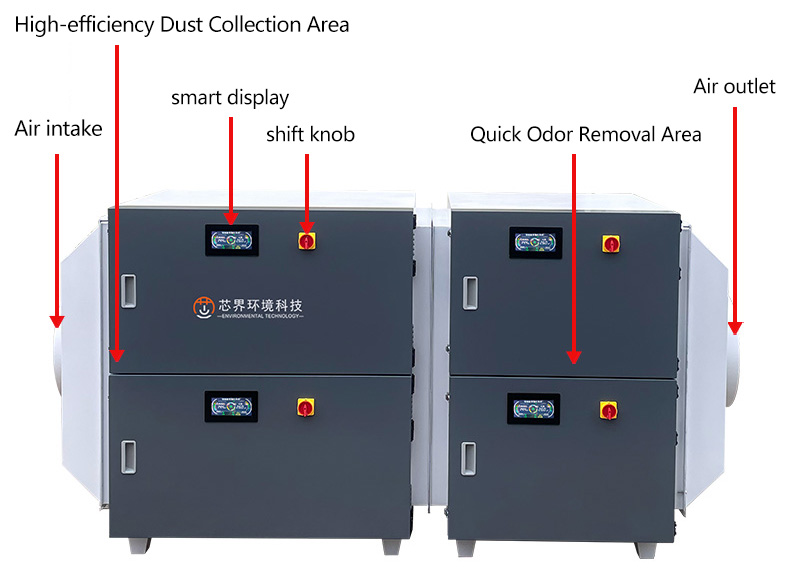

Electrostatic oil mist purifier - Centralized type

Horizontal type

• Application scenarios: Spray painting workshops, printing factories, rubber and plastic industries, hospitals, laboratories, etc. (horizontal type)

• Filtration efficiency: 80% - 99%

• Purification principle: Primary filtration + UV photocatalyst lamp

• Installation method: Centralized installation in pipes or outdoor/indoor floor-mounted installation

• Maintenance method: UV light-oxygen lamps can be replaced and regular maintenance is required.

• Maintenance period: The designed lifespan of the UV photocatalyst lamp is 10,000 to 13,000 hours.

• Cleaning method: Soak in the cleaning solution in warm water for 30 minutes, then rinse with clean water and dry.

• Optional accessories: Must be used in conjunction with the fan / Supports custom mounting bracket; Exhaust gas temperature: < 70℃

■ TECHNICAL PARAMETERS

Model	SY-4D	SY-6D	SY-7D	4D/B模块
Airflow dealer	3500-5000	7000-9000	10000-15000	3500-5000
Filter efficiency	80%-99%	80%-99%	80%-99%	80%-99%
UV Lamp Power	3	6	9	3
Voltage（V）	380V	380V	380V	380V
Outlet diameter（mm）	≤600	≤600	≤600	≤600
Measure（LWH)	14688501245	23008501245	31338501245	8338501245
Performance consumables	Consumable-free

Note: Our company continuously researches and improves product specifications and designs. We reserve the right to modify the above specifications without prior notice.

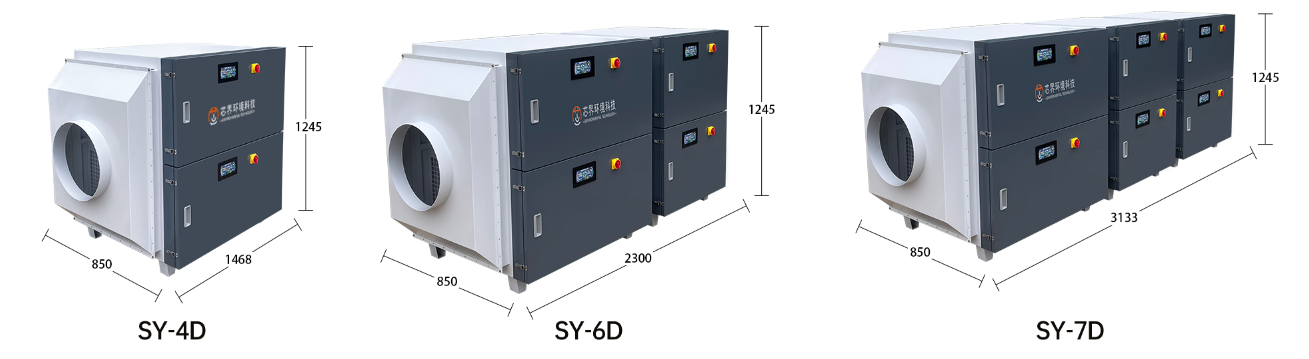

■Product External Dimensions

※ The above information about the appearance and dimensions of the products is for reference only. There may be slight differences in the actual products, which do not affect the actual usage effect. Please refer to the physical items you receive!
