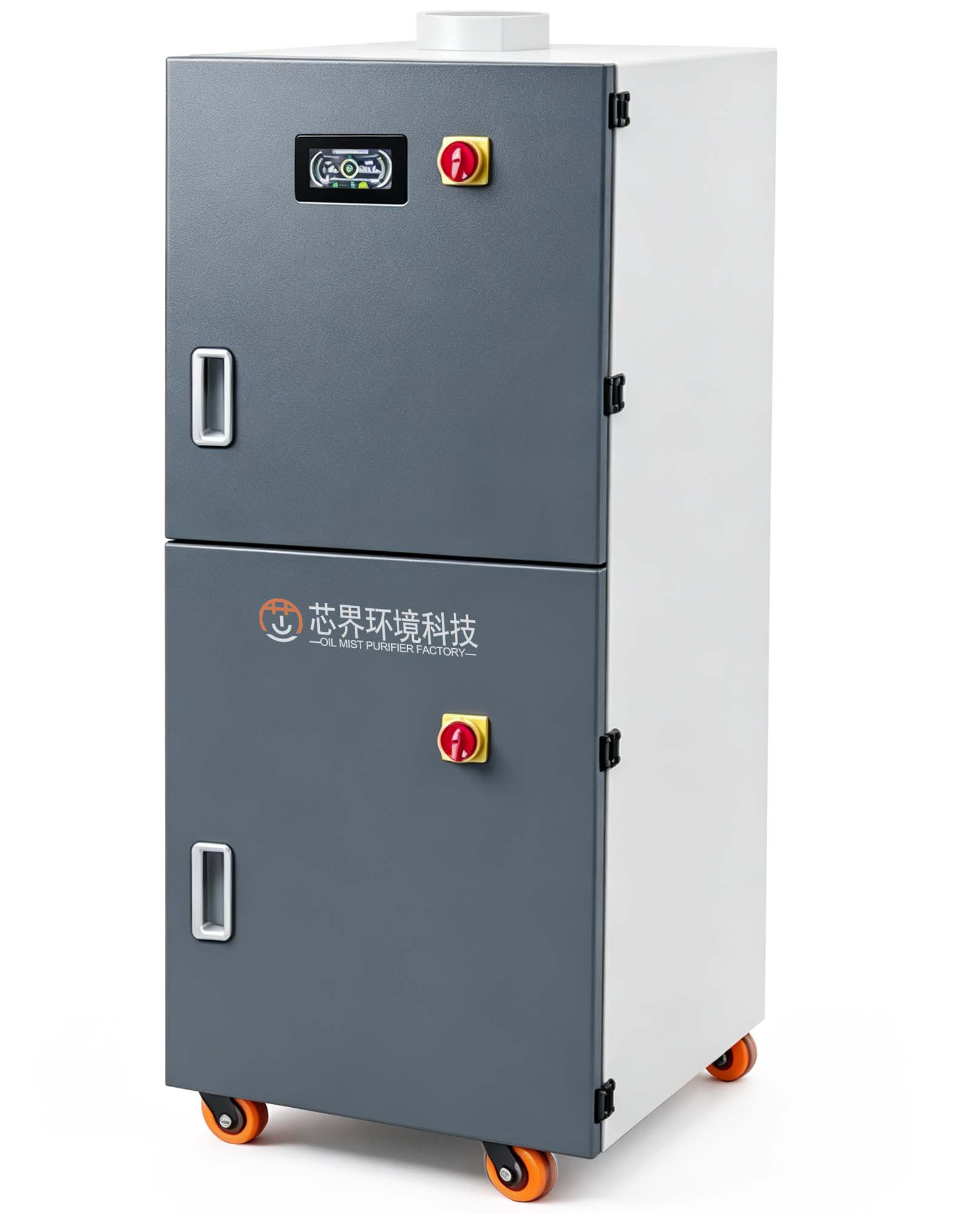

Scheme 1 (Electrostatic Pure Electric Field Type)

        The vertical smoke purifier adopts the principle of electrostatic adsorption. With the dual function of high-voltage ionization + low-voltage dust adsorption and collection, it efficiently captures and purifies pollutants such as smoke, oil fume, dust and aerosols in industrial, commercial and residential environments. The equipment features high efficiency and energy saving, easy maintenance and wide applicability, perfectly meeting purification requirements of multiple application scenarios.

Scheme 2 (Activated Carbon Adsorption Box)

       The activated carbon adsorption box is a high-efficiency and eco-friendly waste gas treatment device. Leveraging the porous adsorption property of activated carbon, it physically adsorbs and purifies industrial waste gas, volatile organic compounds (VOCs), peculiar odor, dust and other pollutants. It is widely applied in industries including printing and packaging, chemical engineering, pharmaceutical and laboratories, serving as core equipment for enterprises to achieve environmentally compliant emissions.

Scheme 3 (UV Photolysis Deodorizer)

       The integrated UV photolysis and activated carbon unit is a high-efficiency composite waste gas treatment equipment. It combines UV photolysis oxidation technology with activated carbon adsorption technology. Via a dual purification mechanism, it performs advanced treatment on volatile organic compoun (VOCs), malodorous gases and toxic and harmful substances in industrial waste gas, achieving efficient purification of pollutants.

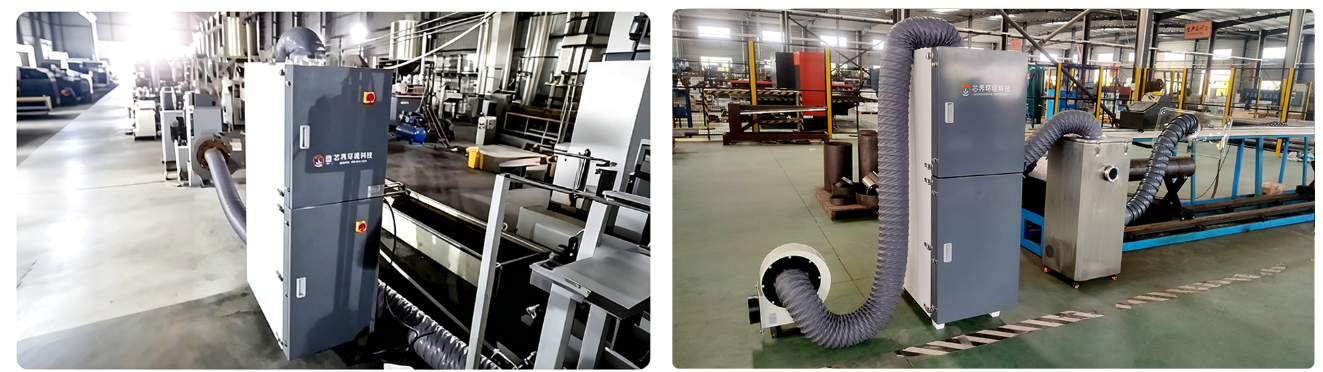

• Application Scenarios: Spraying workshops, printing houses, rubber & plastics industry, hospitals, laboratories, etc.

• Purification Principle: Primary filtration + UV photo-oxygen lamp

• Installation Method: Centralized ducted installation, or indoor/outdoor floor-standing installation

• Maintenance Method: UV photo-oxygen lamps are replaceable and require regular maintenance

• Maintenance Cycle: The design service life of UV photo-oxygen lamps reaches 10,000~13,000 hours

• Cleaning Method: Soak in warm water with cleaning solution for 30 minutes, then rinse with clean water and air dry

• Optional Accessories: To be used matched with a fan

• Exhaust Gas Temperature: ＜70℃
