•Applications: Dewatering and filtration of hydraulic oil, gear oil, diesel, transformer oil, lubricating oil, etc •Filtration Accuracy: 5-100um (Optional) •Purification principle: vacuum flash technology + filter element filtration •Installation method: mobile design (equipped with casters with brakes) to support on-board operation •Working performance: high-efficiency dehydration + precision filtration of impurities + vacuum degassing •Processing capacity: 1-200L/min •Ambient temperature: -10°C~45°C •Support customization: Explosion-proof configuration can be customized        ▲For reference only, it depends on the working conditions

■ Product introduction

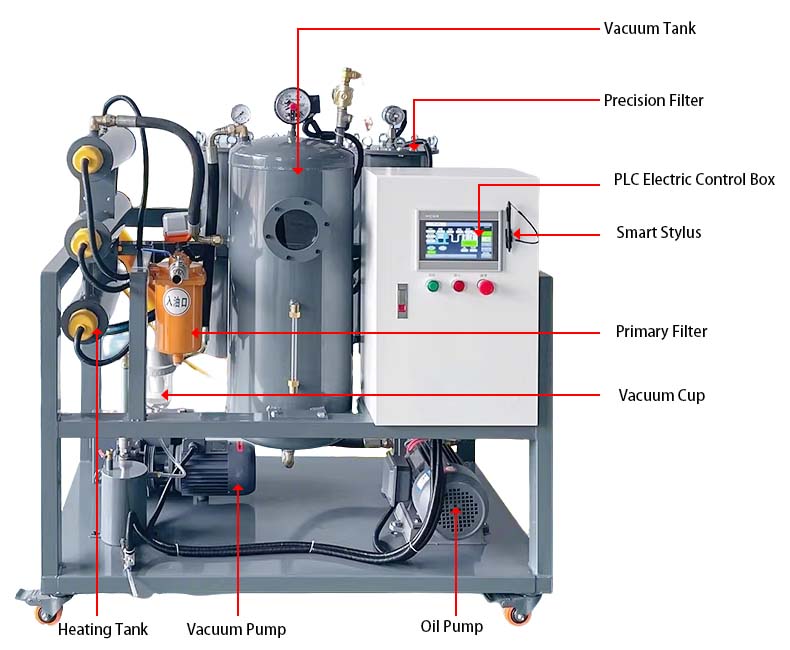

The vacuum oil purifier is an efficient and professional oil purification equipment. Its core principle is to atomize or make the oil thin in a vacuum environment

The membrane greatly increases the surface area, so as to efficiently remove dissolved water, gases (such as air) and light hydrocarbons from the oil; At the same time

The multi-stage precision filtration system effectively filters out free water, solid particles and colloidal substances, and significantly improves the insulation strength of the oil.

Lubrication performance and cleanliness.

■ Scope of application

It is suitable for hydraulic oil, gear oil, diesel, transformer oil, engine oil, lubricating oil and other oils to restore its insulation and lubricityand antioxidant properties, prolonging the service life of oils.

■ ■Advantages

■Installation use

■ Technical reference

▲Supplementary Note 1: The above parameters are the results of the experimental oil overcurrent test, which may differ due to the comprehensive influence of on-site working conditions (such as flow, pressure, temperature) and different oil characteristics (such as viscosity, pollutant type and concentration).

▲Supplementary Note 2：Oil cleanliness adopts the NAS standard. The figure represents the cleanliness class of the oil; the smaller the value, the higher the cleanliness. The marking “＜8” means the maximum cleanliness level achieved is Class 8.
