Industrial Oil-Water Separator (Floating Oil Skimmer)

Oil-Water Separator

Industrial Oil-Water Separator (Floating Oil Skimmer)

The floating oil skimmer is an environmental protection equipment specially designed for efficiently treating floating oil, oil contamination and other light liquid pollutants on the water surface. Adopting physical separation technology, it can quickly and continuously collect floating oil from the surface of industrial wastewater ponds and other water areas without adding chemical agents or causing secondary pollution.

拨打电话

产品详情

Industrial oil slick recovery machine

Stainless steel

•Applications: Machining, cleaning and surface treatment, petrochemical, environmental protection and sewage treatment and other industrial scenarios

•Purification Efficiency: 80%~98%

•Purification principle: physical separation

•Mounting method: no fixed installation required (with moving casters)

•Control mode: manual/automatic

•Main body material: 304 stainless steel (support customization)

•Cleaning method: Open the cleaning valve after regularly pumping clean water to prevent corrosion

•Optional accessories: float suction cup/oil suction tube ▲For reference only, it depends on the working conditions

■ Product introduction

The oil slick recovery machine is an environmentally friendly equipment designed for efficient treatment of oil slicks, oil stains, and other light liquid contaminants on the surface of water bodiesIt uses physical separation technology to quickly and continuously move from industry without adding chemicals and causing secondary pollution

Oil slicks are collected on the surface of water such as wastewater ponds.

■ Scope of application

All kinds of large, medium and small liquid surface oil slick treatment, such as oil separation reservoirs, cooling circulation tanks, and pretreatment conditioning tanks for oily wastewaterOutdoor oily reservoirs, grease traps, conditioning tanks, cleaning wastewater tanks and other liquid surface oil slicks.

■ Complete models to meet different needs

浮油机

■ Working principle

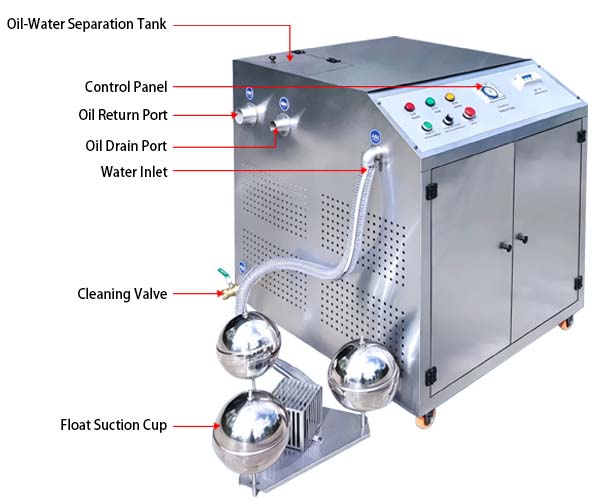

The equipment is equipped with a float suction cup, which uses buoyancy to suspend on the liquid surface and adapt to water level changes.Always adhere to the thickest areas of the oil layer. Pump the surface of the oily liquid (oil-water mixture)Suction delivery pipeline. After the mixture enters the inner cavity, it is oil (low density) and water (high density)Natural layering characteristics, secondary separation in static/slow flow. The oil slick is diverted to the oil collection drum,The clean water returns to the original sink through the drain. The device collects and recycles surface oil slicks, coveringAll liquids with a specific gravity of less than water, such as engine oil, kerosene, diesel, lubricating oil, vegetable oil, etc.,And it is not limited by the thickness of the oil layer

■ Advantages

Wide range of applications

High efficiency and low consumption

Convenient and mobile

Customization is supported

Machine tool water tank, machining center

surface, cleaning equipment, cutting

Cutting liquid, industrial sewage, oil

oil slick collection in fields and other scenarios

and treatment

Degreasing rate 80%~98%,

Oil slick can be collected recycled

The structure is simple and the operation is stable

The later operating costs are almost zero

Equipped with a timer clock,

Span wheel, no need to guard it manually

You can rotate 24 hours a day

work

Customized to meet the requirements

products under working conditions

Such as: pneumatic, explosion-proof,

Windproof and rainproof type

■ Installation and use

Help solve the problem of liquid level degreasing in different industrial scenarios

■ Technical parameters

model	FB-300 (Carbon Steel)	FB-500 (Carbon Steel)	FB-500	FB-1000	FB-1350	FB-1800	FB-2500	FB-3200
Flow rate (L/H)	1-300	1-500	1-500	1-1000	1-1350	1-1800	1-2500	1-3200
Suction Distance (M)	1-3	1-3	1-3	1-5	1-5	1-5	1-5	1-5
Power (W)	370	370	370	550	750	750	1500	2200
Voltage (V)	220	220	220	220	380	380	380	380
PH value	4-10	4-10	4-10	4-10	4-10	4-10	4-10	4-10
Permissible Particles (MM)	2.0	2.0	2.0	3.0	3.0	3.0	3.0	3.0
Liquid temperature (°C)	0-60	0-60	0-60	0-60	0-60	0-60	0-60	0-70
Size (LWH)	425370550	440400640	440400640	4606701000	4607601000	6907301000	8309401050	100010801050

Note: The company is constantly researching and improving product specifications and design, and the above specifications are subject to change without prior notice.

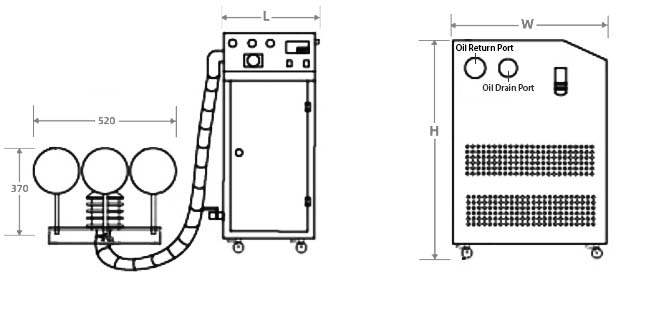

■ Product dimensions

浮油机图纸

Unit: millimeter (mm)

※The above product appearance and size information is for reference only, the actual product may have slight differences, will not affect the actual use effect, please refer to the actual product received!
