Mobile smoke purifier

Smoke Cleaner

Mobile smoke purifier

This laser fume purifier is specially designed for industrial and commercial scenarios. It can efficiently remove harmful smoke, oil mist, dust and other pollutants. Adopting electrostatic dust removal technology combined with a multi-layer filtration system, it purifies indoor air effectively.Equipped with a mobile structure, it is flexibly applicable to laser cutting, welding, engraving and other working environments. It is especially suitable for users who need to frequently switch work sites, ensuring a safe and healthy working environment.

Product Details

Mobile Fume & Dust Purifier

Electrostatic Type

•Application: Machining, fastener cold heading, heat treatment, EDM and other mobile working sites

•Purification Efficiency: 80%~98%

•Purification Principle: Primary filtration + plasma electrostatic field

•Installation: Indoor / outdoor floor mounting

•Maintenance Method: Clean the electric field and filter screens

•Maintenance Cycle: 200~600 hours

•Cleaning Method: Soak in warm water with cleaning solution for 30 minutes, rinse with clean water, then air dry naturally

•Optional Accessory: Customizable smoke collecting hood available

•Exhaust Gas Temperature: ＜70℃

▲ For reference only, subject to actual working conditions.

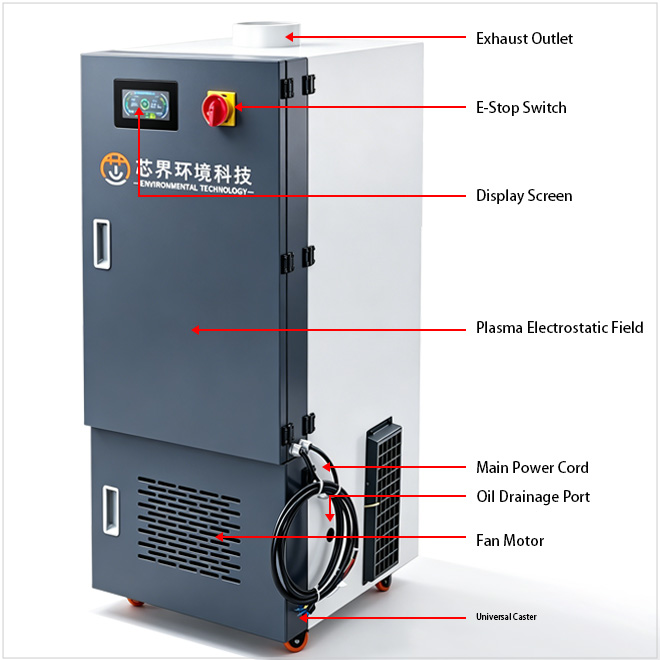

■ Product Introduction

■ Working Principle

Air Intake: The built-in motor drives the fan to run at high speed, drawing polluted air into the equipment.Primary Filtration: Metal mesh or primary filter cotton first intercepts large particles and debris, reducing the maintenance frequency of subsequent components.High-efficiency Purification: Air enters the high-voltage electrostatic field. After particles are ionized and charged, they are adsorbed on the low-voltage dust collection plate to complete smoke and dust removal.Clean Air Discharge: The purified air is discharged from the top air outlet, effectively improving the air quality of the workshop.

■ Wide range of application

It is suitable for various laser processing, metal processing enterprises, hardware machinery factories, electromechanical machinery industry, and various metal cutting/welding/polishing scenarios. It cleans the air of oil mist (oil vapor), smoke (flue gas) and fine dust, and is a high-efficiency electrolytic smoke and dust removal equipment.

■Characteristics

Working Principle	Eco-friendly & Low-cost	Oil Mist Collection	Removable / Portable
The core plasma electrostatic field adopts high-voltage ionization technology to instantly charge particulate matters for strong adsorption. It delivers high single-pass purification efficiency and easily captures fine impurities.	Highly efficient and practical. The plasma electrostatic field is reusable after cleaning, requiring no frequent replacement of consumables. It greatly reduces long-term operating costs, achieving both cost efficiency and environmental performance.	Built-in oil guide pipe at the bottom enables rapid separation and collection of liquid oil. It supports both recycling and reuse, as well as centralized compliant discharge, effectively avoiding oil mist pollution.	Equipped with universal casters, it moves effortlessly and flexibly, enabling quick relocation between different workstations and workshops. It is especially suitable for dynamic working scenarios such as automobile maintenance and workshop welding, with no fixed installation required.

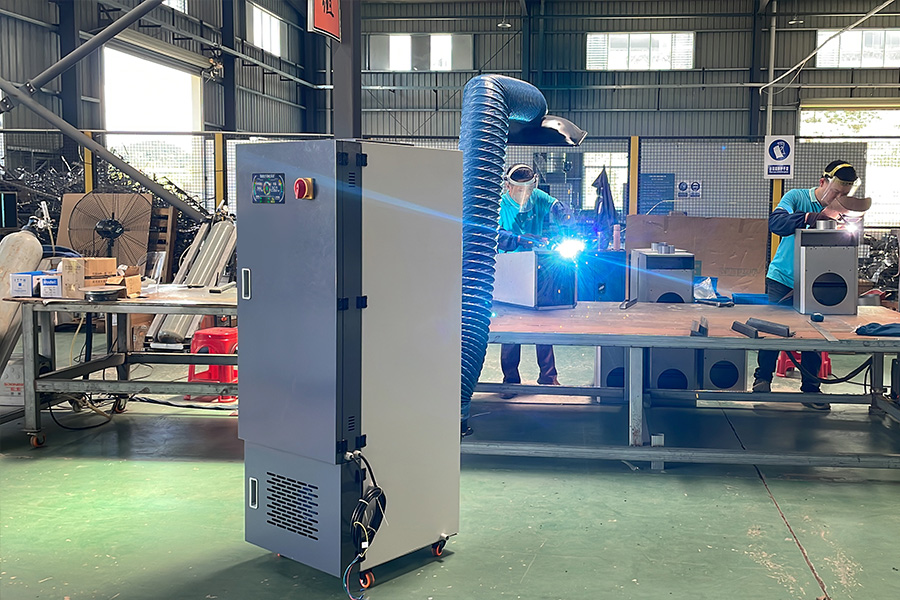

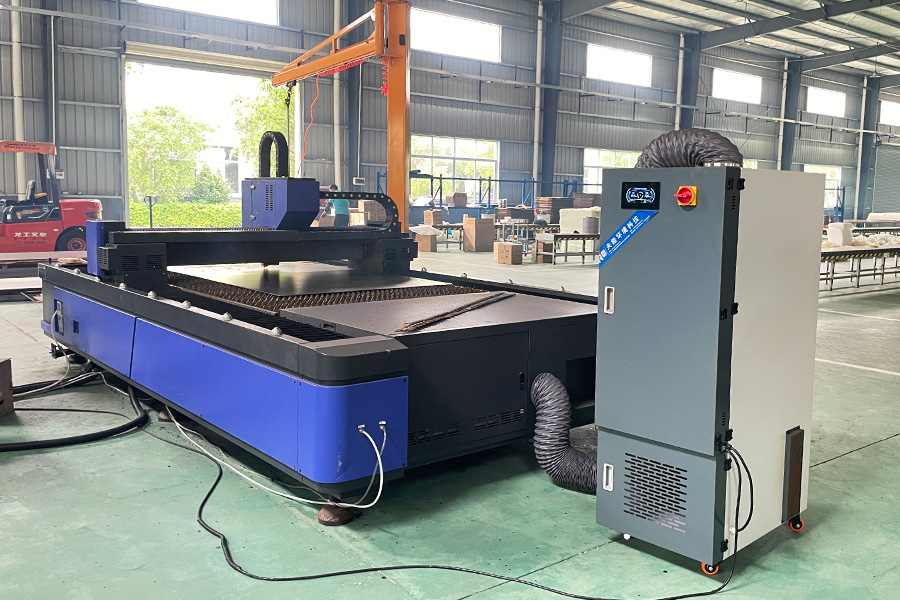

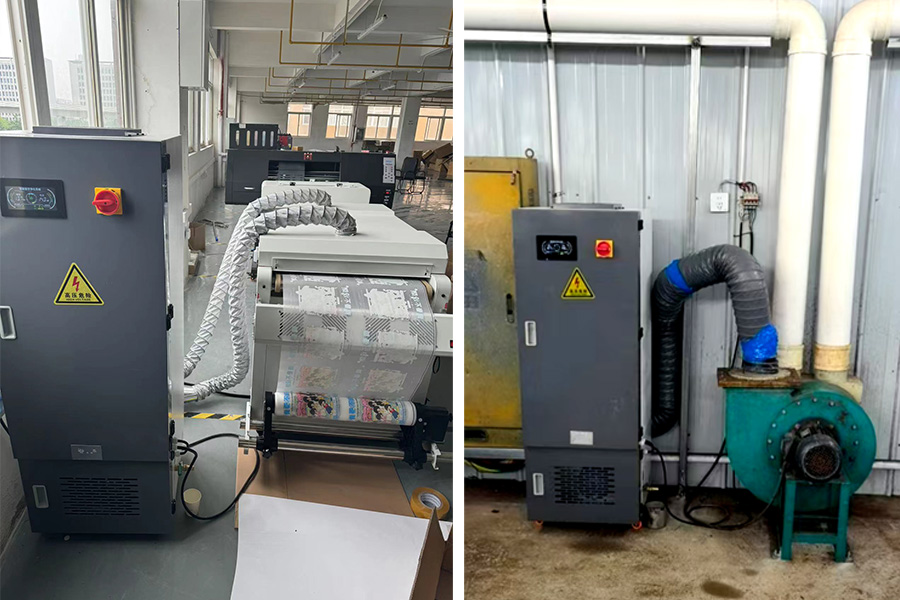

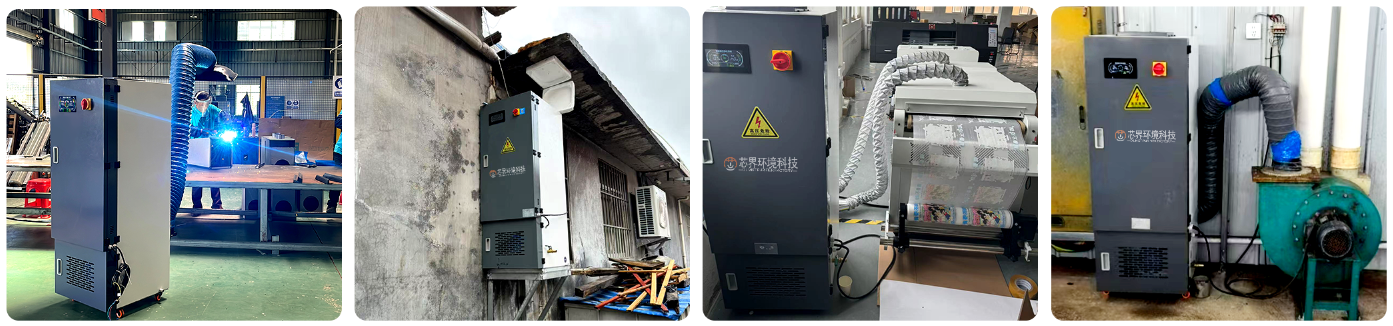

■ On-site Installation

■ TECHNICAL PARAMETERS

Model	FCB-1	FCB-2	FCB-3
Airflow dealer	900-1500	1600-2000	3000-4000
Outlet diameter（mm）	150	150	150
Power（W)	520	1600	2950
Voltage（V）	380	380	380
Measure（LWH)	660660870	6006601200	6006601480

Note: Our company continuously researches and improves product specifications and designs. We reserve the right to modify the above specifications without prior notice.

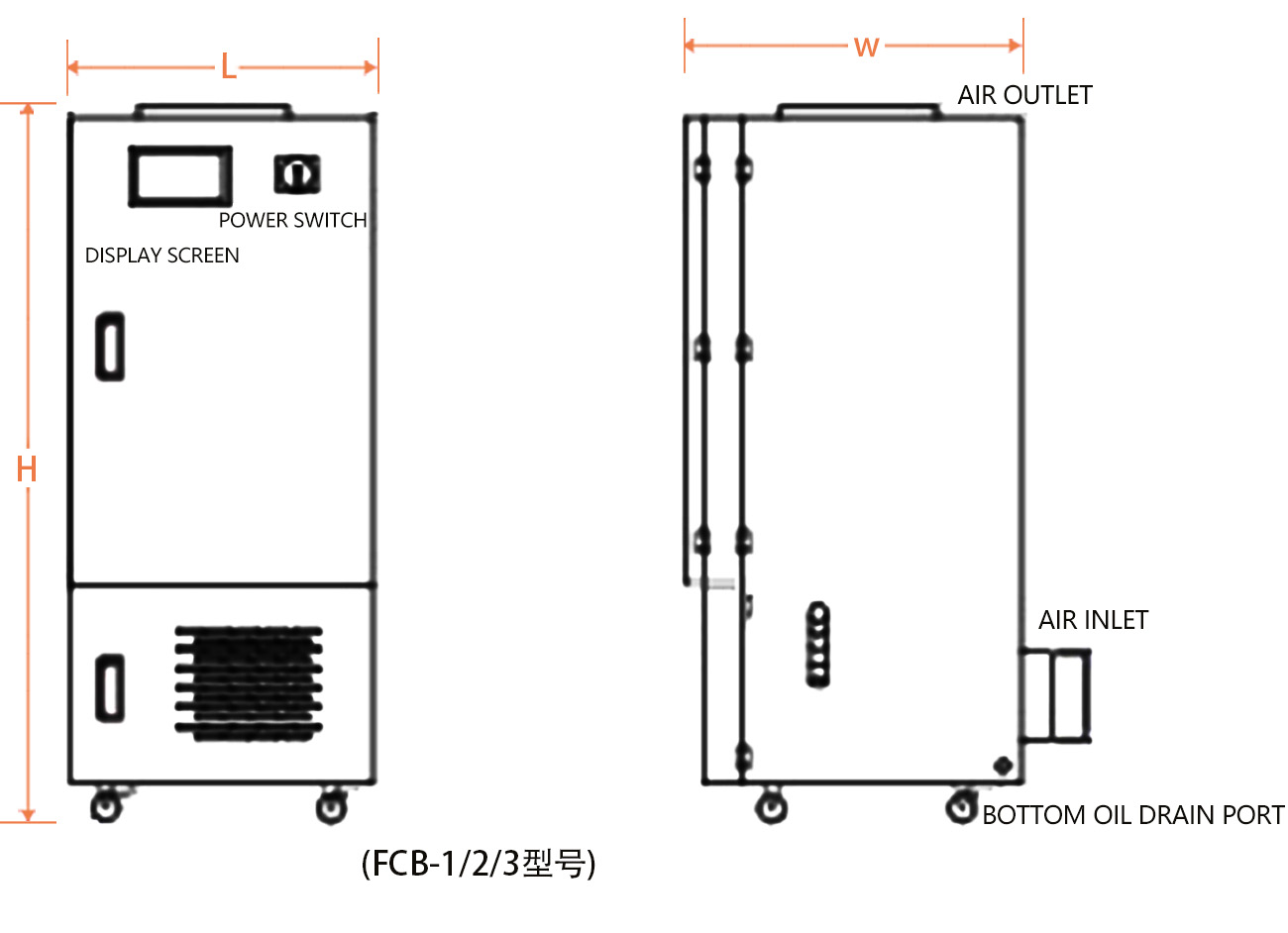

■External Dimensions

Unit: Millimeter (mm)

※ The above product appearance and dimensions are for reference only. The actual product may have slight differences, which will not affect the use effect. Please take the physical product as standard!

Smoke Cleaner丨Case

Mobile Filter Cartridge Smoke Purifier Application Cases

Customer profile: A small hardware accessories processing factory, focusing on hardware brackets, connector welding processing, there are 4 sets of mobile weldi...

Mobile Electrostatic Smoke Collector Application Cases

Customer profile: A medium-sized mechanical processing plant, mainly engaged in the welding processing of machine tool accessories and mechanical components, th...
