Mobile Purifier with Filter Cartridge

The movable filter-type smoke purifier is a high-efficiency purification device specially designed for industrial smoke and dust, welding exhaust gas, grinding dust and harmful gases.
Adopting a filter cartridge structure with diversified models, it can be flexibly selected according to working conditions. It is widely applicable to welding workshops, metal processing, laser cutting, chemical laboratories and other scenarios.
The equipment integrates a pre-filter layer and high-efficiency filter elements. Through multi-stage physical adsorption, it quickly captures and separates smoke particles, fume and toxic gases such as ozone and formaldehyde, and finally discharges clean air.

Product Details

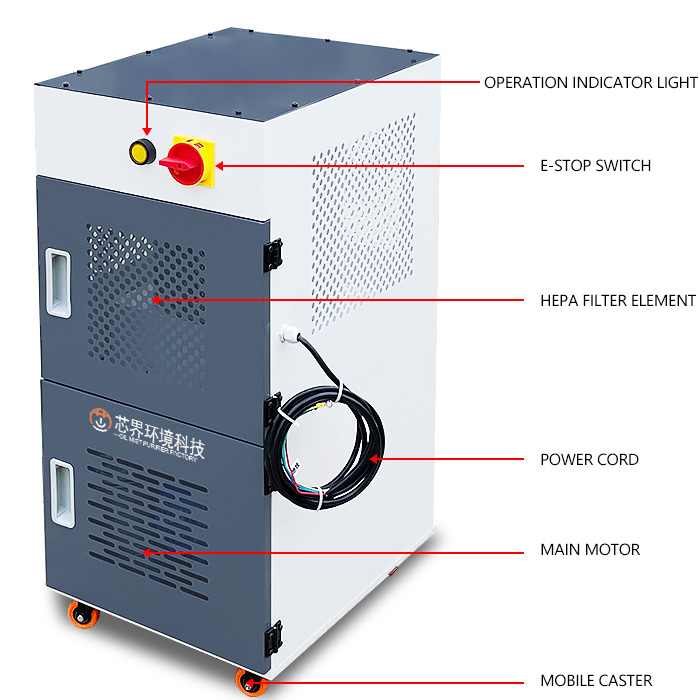

Mobile Purifier with Filter Cartridge

•Application: Laser engraving/cutting, welding, cutting, metal grinding/polishing

•Purification efficiency: 80%~98%

•Purification principle: Pre-filter + HEPA filter

•Installation method: Indoor floor mounting

•Maintenance method: Replace pre-filter cotton and HEPA filter element

•Maintenance cycle: 9~12 months

•Cleaning method: Non-washable

•Optional accessories: Customizable smoke hood

•Exhaust gas temperature: ＜70℃

▲ For reference only, subject to actual working conditions.

■ Product Introduction

The movable filter-type smoke purifier is a high-efficiency purification device specially designed for industrial smoke and dust, welding exhaust gas, grinding dust and harmful gases.

Adopting a filter cartridge structure with diversified models, it can be flexibly selected according to working conditions. It is widely applicable to welding workshops, metal processing, laser cutting, chemical laboratories and other scenarios.

The equipment integrates a pre-filter layer and high-efficiency filter elements. Through multi-stage physical adsorption, it quickly captures and separates smoke particles, fume and toxic gases such as ozone and formaldehyde, and finally discharges clean air.

■ Working Principle

After the equipment is started, the built-in centrifugal fan generates negative pressure airflow. It draws smoke, dust, fume and toxic gas into the machine through the waste gas inlet.The exhaust gas first passes through the primary filter cotton to intercept large particles such as sparks and metal scraps (>5μm), extending the service life of the subsequent filter elements.Then the airflow enters the high-efficiency filter (HEPA filter) for deep filtration of particles above 0.2μm and adsorption of gaseous pollutants.The purified air is pressurized by the fan and discharged through the side air outlet.

■ Wide range of application

It is used for purifying smoke, fume and dust generated in working procedures such as welding, polishing, cutting and grinding, as well as recycling rare metals and valuable materials. It can effectively purify a large number of fine metal particles suspended in the air that are harmful to the human body.

■Characteristics

Purification Effect	Product Structure	Energy-saving and low consumption	Operation Stability
It delivers excellent purification performance for oil mist particles with a particle size of up to 0.2μm.	Adopts high-temperature plasticization anti-corrosion technology, featuring corrosion resistance, oil pollution resistance and long service life.	Low operating wind resistance and low fan power consumption. Its energy consumption is only 30%-50% of electrostatic purifiers. The collected waste oil can be recycled and reused, which is energy-saving and environmentally friendly, helping enterprises reduce operating costs.	No high-voltage electric field required, low noise operation (<64dB), complying with industrial environmental standards.

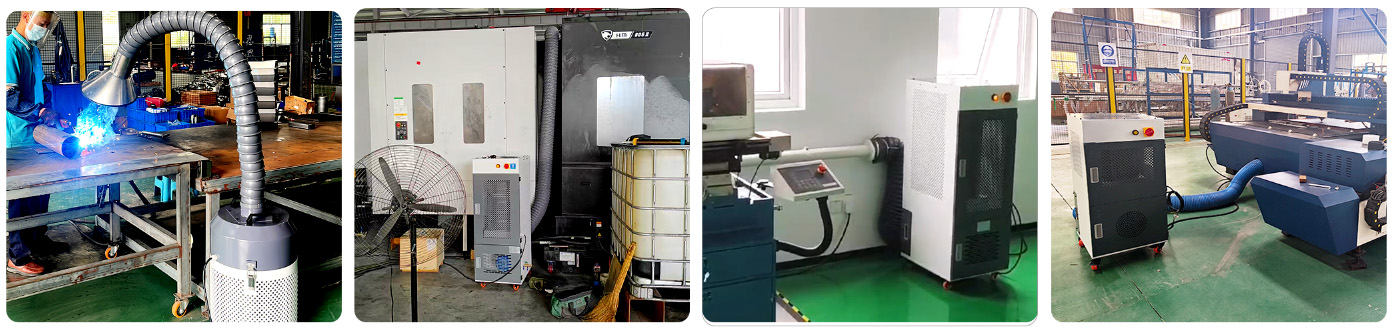

■ On-site Installation

Full range of models for different requirements.

■ TECHNICAL PARAMETERS

Model	FCA-1	FCA-2	FCA-3	FCA-4	FCA-5
Airflow dealer	600-1000	1000-1500	1600-2000	2000-3000	3000-4000
Outlet diameter（mm）	110	150	150	150	150
Power（W)	370	750	1100	1100	2200
Voltage（V）	380	380	380	380	380
Measure（LWH)	400400620	530320710	530320710	620390840	620390840

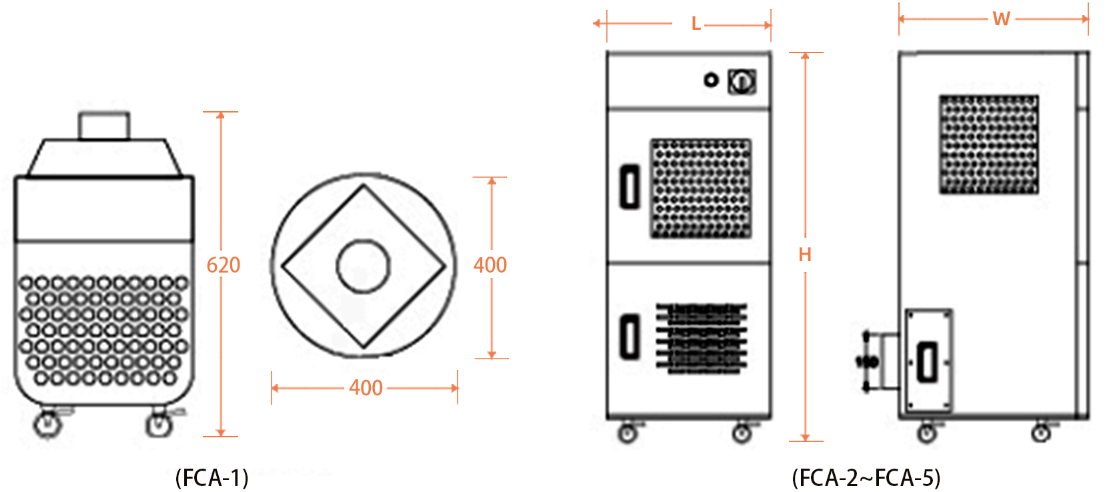

■External Dimensions

Unit: Millimeter (mm)

※ The above product appearance and dimensions are for reference only. The actual product may have slight differences, which will not affect the use effect. Please take the physical product as standard!
