Electrostatic Oil Mist Purifier (Single Unit / One-Drag-Multiple)

oil mist collector

Electrostatic Oil Mist Purifier (Single Unit / One-Drag-Multiple)

The electrostatic oil mist purifier adopts mechanical + electrostatic dual purification.Oil fume first passes through the filter screen to intercept large oil mist particles, and the separated oil and water are recycled.The dehydrated oil fume then enters the high-voltage electrostatic field for ionization and decomposition.While the corona field decomposes and adsorbs the remaining fine particles, it generates ozone to realize sterilization and deodorization.

拨打电话

产品详情

Electrostatic Oil Mist Purifier

HK-C

• Application: Machining, fastener cold heading machine, heat treatment, electrical discharge machining, etc.

• Purification Efficiency: 80%~98%

• Purification Principle: Primary filtration + plasma electric field

• Installation Method: Top mounting on equipment / bracket fixed mounting

• Maintenance Method: Clean the electric field and filter screen

• Maintenance Cycle: 200~600 hours

• Cleaning Method: Soak in warm water with cleaning solution for 30 minutes, then rinse with clean water and air dry naturally

• Optional Accessories: Custom fixed bracket available• Exhaust Gas Temperature: ＜70℃

▲ For reference only, subject to actual working conditions

■Product Introduction

The electrostatic oil mist purifier adopts mechanical and electrostatic dual-stage purification.

Large oil mist particles are first trapped by the filter screen, and the separated oil and water are recycled.The preliminarily treated gas then enters the high-voltage electrostatic field for ionization and decomposition.The corona field decomposes and adsorbs the remaining fine particulate matter, meanwhile generating ozone to achieve sterilization and deodorization effects.

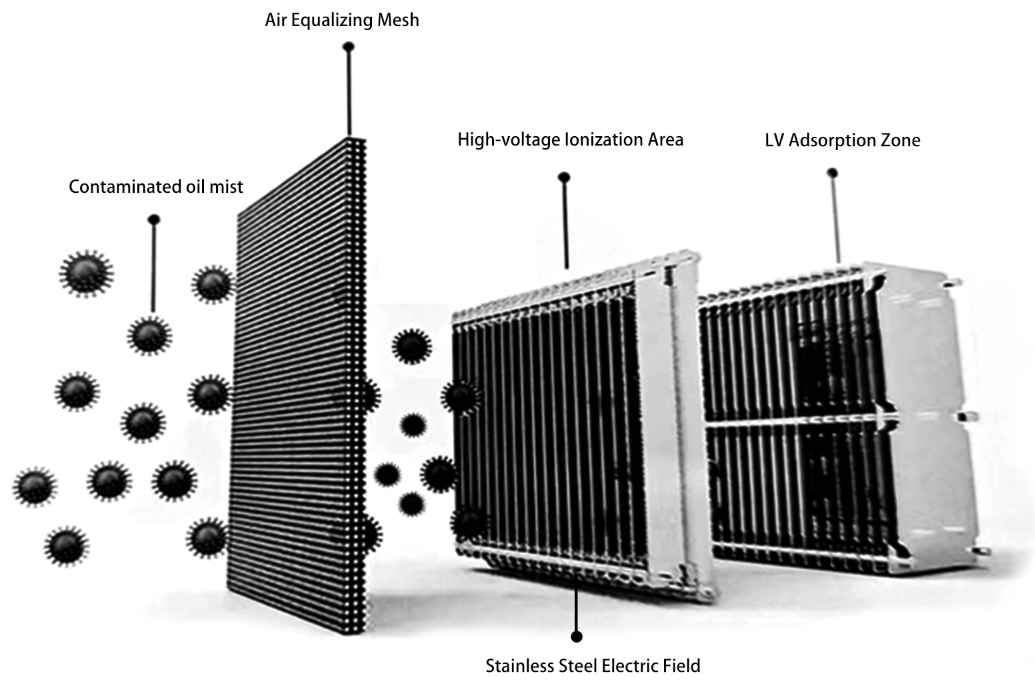

■ Working Principle

Pre-filtering Area:Adopts dual filtration of mechanical structure and stainless steel electric field, intercepting most large oil mist particles. The configuration can be customized as required.

High-voltage Ionization Zone:Electrode wires and pole plates form an electric field, which ionizes fine oil mist particles and makes them electrically charged.

Low-voltage Dust Collection Zone:Charged particles are adsorbed on the electrode plates, condense into oil droplets and then flow into the recovery tank.

Post-filtering Area:High-efficiency filters or activated carbon filters are optional to further enhance the purification efficiency.

■ Scope of Application

This unit is suitable for filtering and purifying oil mist, water mist, smoke and dust in industries such as CNC lathes, grinding machines, machining centers, gear hobbing machines, gear grinding machines, medium and high-frequency quenching, cold and hot forming, and plastic products processing.

■Characteristics

High-performance Purification	Driving System	Oil Mist Collection System	Customization Supported
Adopts multi-stage composite filtration technology (pre-interception + electrostatic adsorption), with oil mist removal efficiency up to 80%-98%.	Equipped with a high-performance motor to deliver stable suction and ensure rapid intake and purification of oil mist.	An oil guide pipe is arranged at the bottom. The separated liquid oil contaminants can be recycled or discharged in a centralized manner.	Easy for installation and maintenance, customized air volume is available.

■ Full range of models for different requirements.

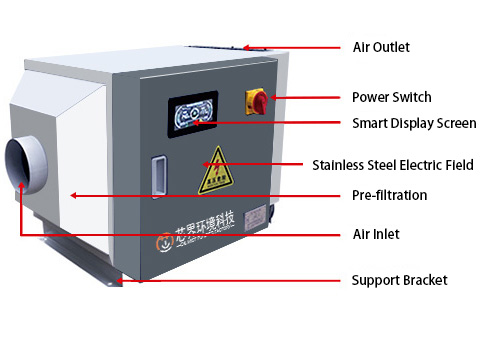

Electrostatic Oil Mist Purifier

stand-alone type

•Application: Machining, fastener cold heading machines, heat treatment, EDM and other scenarios

•Purification Efficiency: 80%~98%

•Purification Principle: Primary filtration + plasma electric field

•Installation Method: Equipment top mounting / bracket fixed installation

•Maintenance Method: Clean electric field and filter screens

•Maintenance Cycle: 200~600 hours

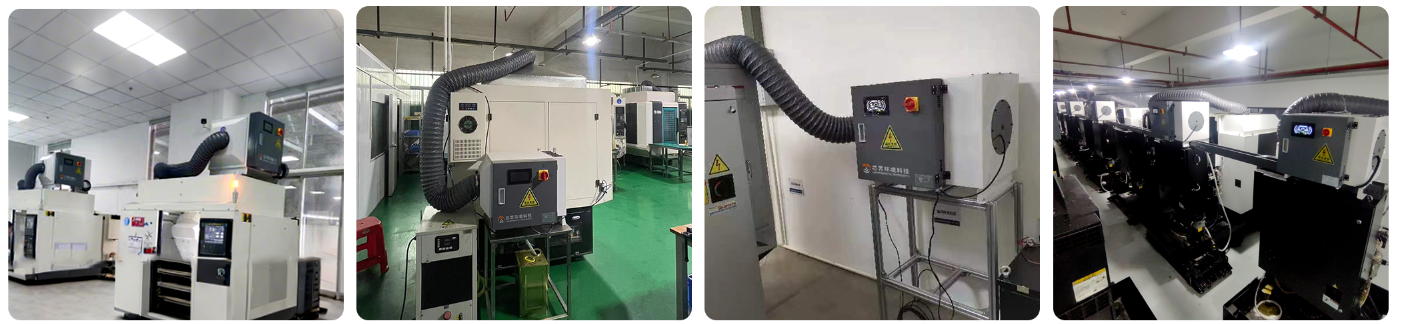

■On-site Installation

■ TECHNICAL PARAMETERS

Model	HK-37C	HK-45C	HK-70C
Airflow dealer	800-1200	1200-2200	2500-3500
Outlet diameter（mm）	150	150	150
Power（W)	325	375	625
Voltage（V）	220V/380V	220V/380V	220V/380V
Measure（LWH)	692490520	850570600	1150570600

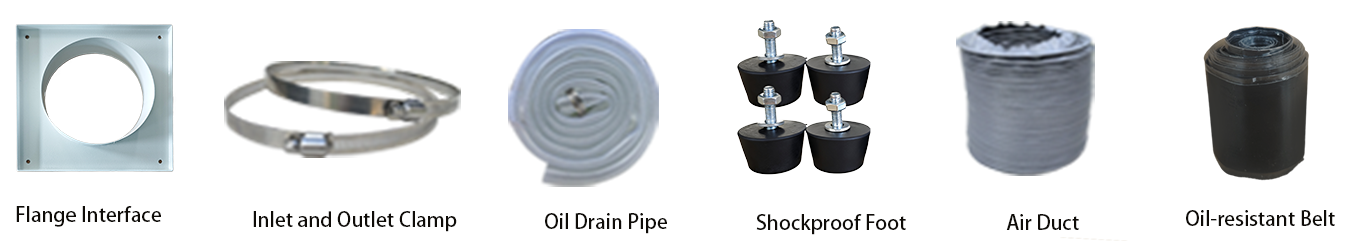

Accessory List

Note: Our company continuously researches and improves product specifications and designs. We reserve the right to modify the above specifications without prior notice.

■ Full range of models for different requirements.

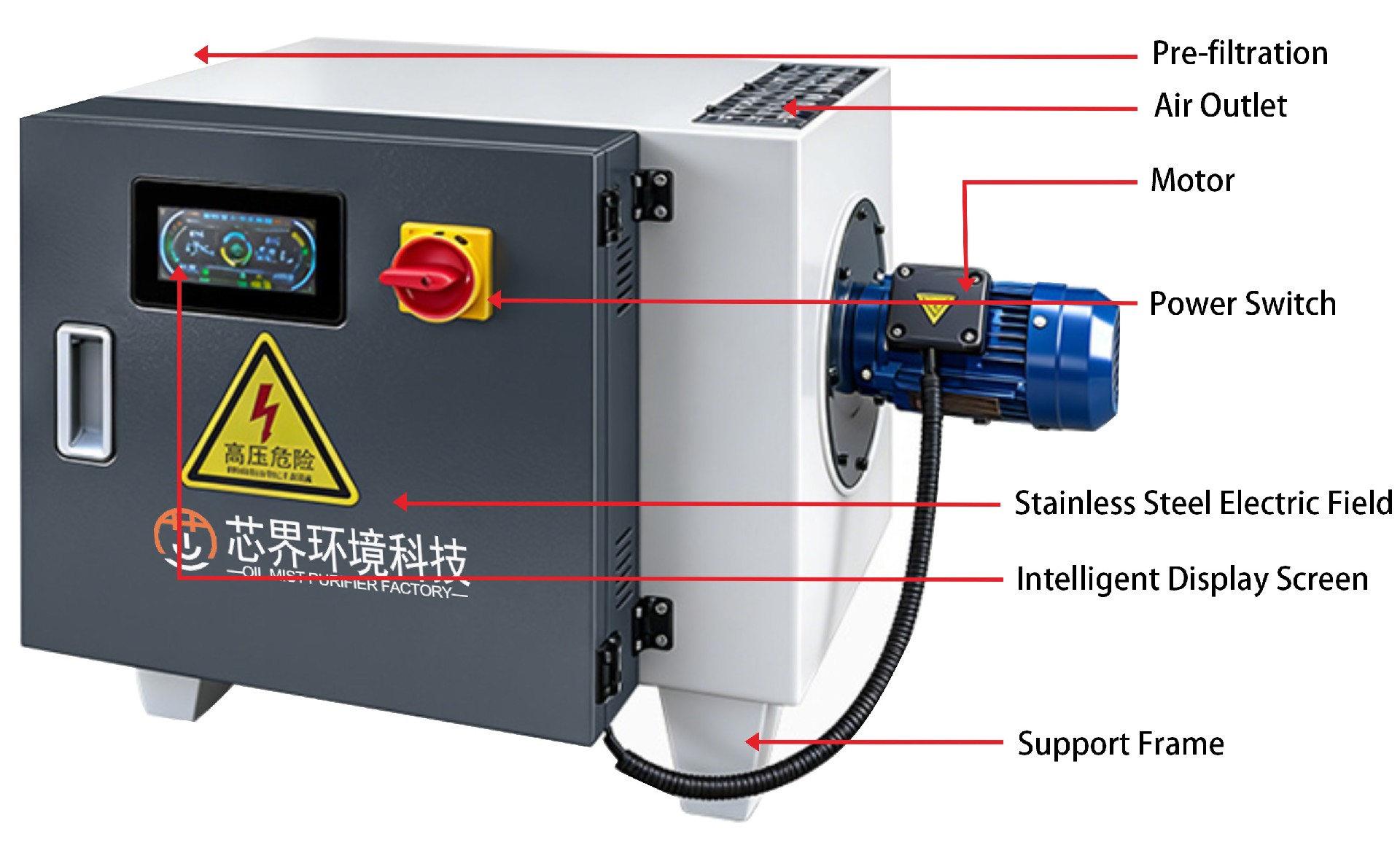

Electrostatic Oil Mist Purifier

One-to-Multiple

•Application: Machining, fastener cold heading, heat treatment, electrical discharge machining (EDM), etc.

•Purification Efficiency: 80%~98%

•Purification Principle: Primary Filtration + Plasma Electric Field

•Installation Type: Top mounting on machine / Bracket fixed mounting

•Maintenance Method: Clean the electric field and filter screens

•Maintenance Cycle: 200~600 hours

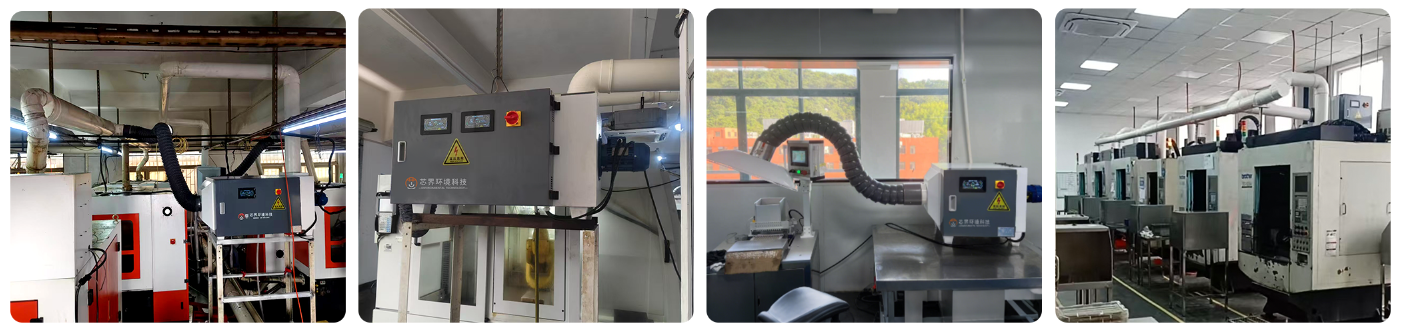

■On-site Installation

■ TECHNICAL PARAMETERS

Model	HK-1C	HK-2C	HK-3C
Airflow dealer	800-1500	1500-2500	2500-4000
Outlet diameter（mm）	150	150	150
Power（W)	450	620	1250
Voltage（V）	380V	380V	380V
Measure（LWH)	887493540	1065573620	1390573620
Accessory List

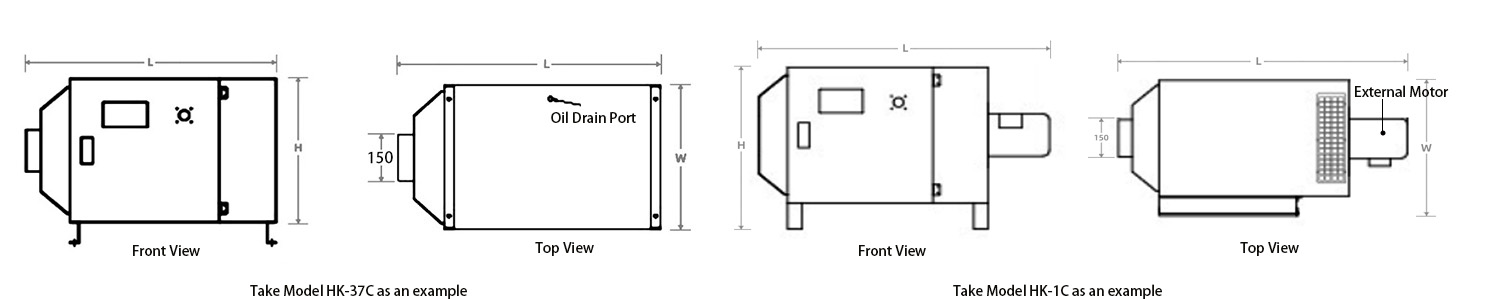

■External Dimensions

※ Note: Our company keeps researching and improving product specifications and designs. We reserve the right to modify the above specifications without prior notice.

※ The appearance and dimension information of the above products are for reference only. The actual product may have slight differences, which will not affect the use effect. Please take the physical product received as the standard.
