Centrifugal Oil Mist Purifier

oil mist collector

Centrifugal Oil Mist Purifier

This multi-functional, entry-level, small-sized nebulizer is an economical and safe option for a small and clean working environment. It can be easily installed on the top of the equipment or on the floor beside it.

拨打电话

产品详情

Centrifugal Oil Mist Purifier

HK-B

离心油雾机

Application Scenarios: CNC machining centers, grinders, grinding equipment and other mechanical processing occasions
Purification Efficiency: 80%~98%
Purification Principle: Pre-filtering + HEPA filter element
Installation Method: Top mounting on equipment / Bracket fixed installation
Maintenance Method: Replace pre-filter cotton and HEPA filter element
Maintenance Cycle: 6~12 months
Cleaning Method: Non-washable
Optional Accessories: Customizable fixed bracket
Exhaust Gas Temperature: ＜45℃
▲ For reference only, subject to actual working conditions.

■ Product Introduction

Centrifugal Oil Mist Purifier is an industrial dedicated air purification equipment. It can capture and separate oil mist, water mist and fine dust generated in mechanical processing (such as metal cutting, CNC machining, etc.).

It efficiently separates oil mist particles in the air by physical centrifugal force. The purified air can be discharged or recycled, which improves the air quality of the workshop and protects workers' health.

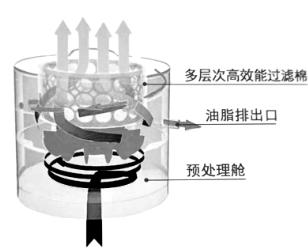

■ Working Principle

Contaminated air from machine tools is drawn into the pretreatment chamber at the bottom of the equipment.The rotating turbine adopts centrifugal force and coalescence principle to rapidly condense oil mist into liquid.Multi-layer high-efficiency filter cotton captures fine particles and prevents pollutants from spreading in the workshop.The oil drain pipe at the bottom returns the collected oil to the machine tool for recycling.

■ Wide range of application

This product is applicable for the filtration and purification of oil mist, water mist, smoke and dust in industries such as CNC lathes, grinding machines, machining centers, gear hobbing machines, gear grinding machines, medium-high frequency quenching, cold/hot forming, and plastic products processing.

■Characteristics

Efficient	Precision Purification	Economical and practical	Wide Application
The centrifugal structure is compact in size, saves space, has low energy consumption and large air volume. It performs better under the same power output.	Centrifugal pretreatment combined with filter cotton and a post high-efficiency filter can treat pollutants such as dust and oil mist, with a filtration accuracy of 0.2 microns.	Front-end centrifugal treatment reduces the cost of rear-end filter media. The overall price is lower than that of pure filter cotton products, offering higher cost performance.	It is compatible with various machine tools such as machining centers, CNC lathes, grinding machines and cleaning equipment, covering a wide range of mechanical processing scenarios.

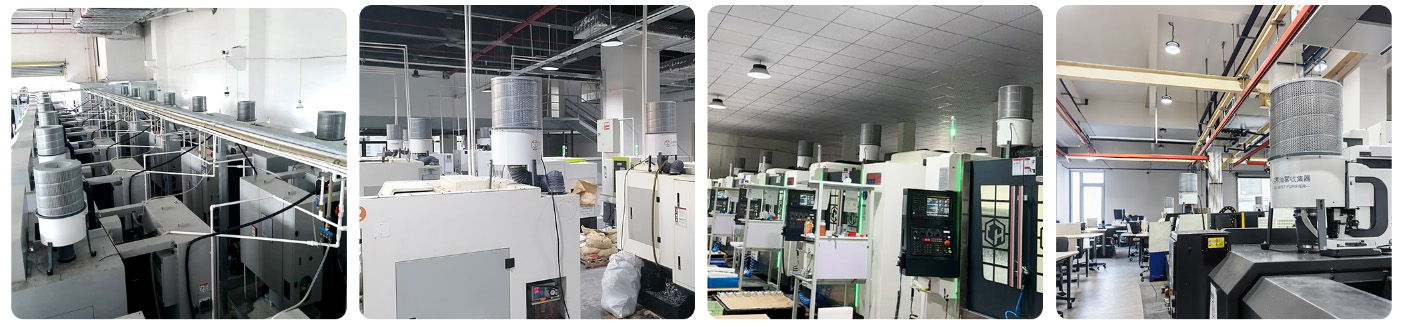

■ On-site Installation

■ TECHNICAL PARAMETERS

Model	HK-25B	HK-37B	HK-75B
Airflow dealer	500-1000	800-1100	1100-1400
Outlet diameter（mm）	110	110	150
Power（W)	250	370	750
Voltage（V）	380	380	380
Measure（LWH)	350408767	350408787	350408807

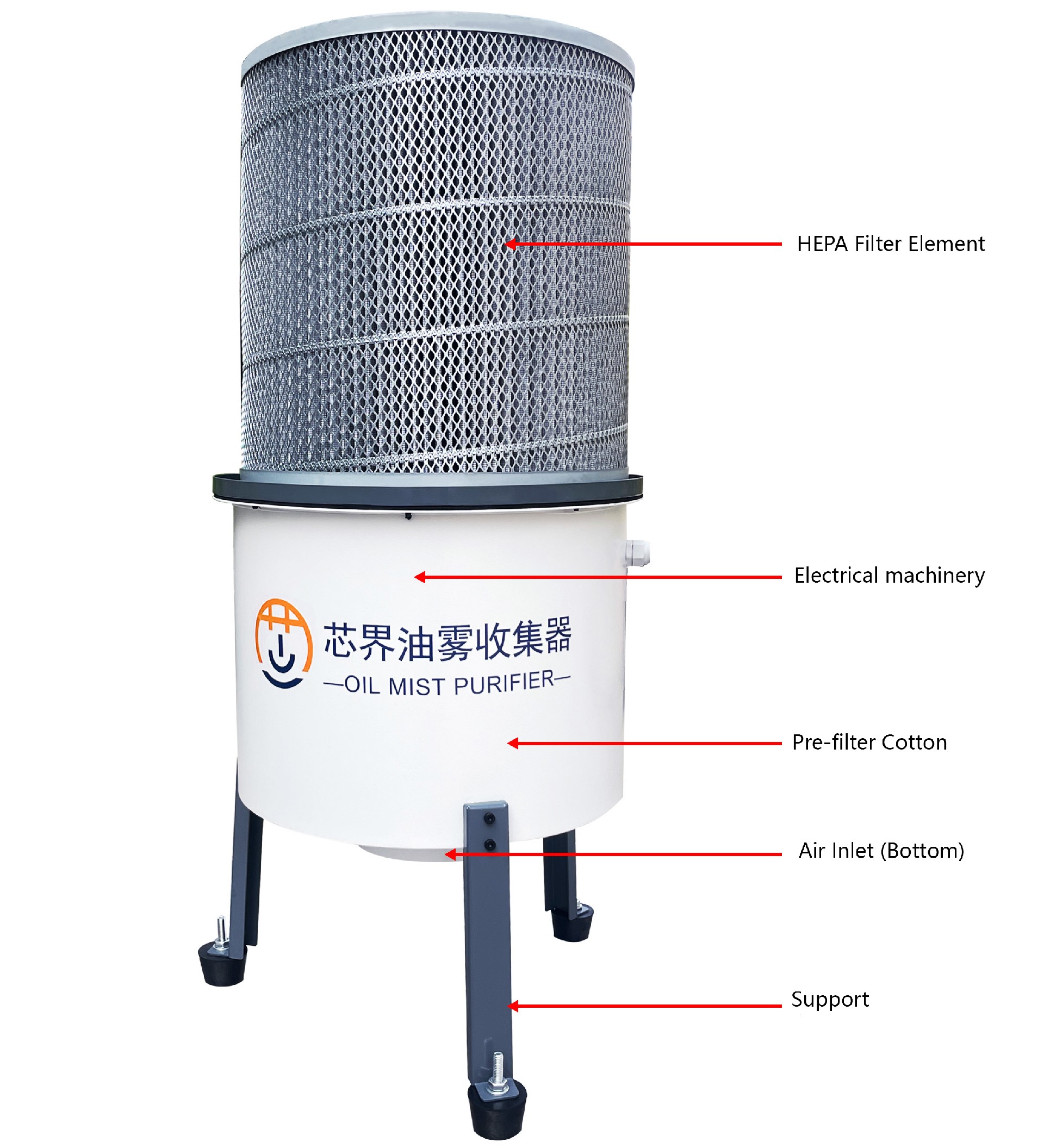

Parts List

Note: Our company continuously researches and improves product specifications and designs. We reserve the right to modify the above specifications without prior notice.

■ External Dimensions

Unit: Millimeter (mm)

※ The above information about the appearance and dimensions of the products is for reference only. There may be slight differences in the actual products, which do not affect the actual usage effect. Please refer to the physical items you receive!
