Wet Type Fume Purifier

This unit is fabricated from 304 stainless steel, featuring excellent corrosion resistance and high temperature resistance. With a compact and streamlined structure, it is perfectly suited for small-scale operation scenarios with limited installation space.
The tower interior integrates a spray system, packing layer and circulating water pump. Optimized gas-liquid contact and distribution deliver outstanding purification performance. The equipment realizes dual effects of dust removal and absorption of soluble harmful gas components, while maintaining stable operation and low energy consumption.

案例

案例2

案例3

Product Details

WET TYPE FUME PURIFIER

FV SERIES

Application Scenarios: Laser cutting, welding & grinding, printing, spraying, roasting machine and more
Filtration Efficiency: 80%~99%
Purification Principle: Circulating water spray purification
Installation Method: Indoor / outdoor floor mounting
Maintenance Method: Regular replacement of circulating water
Maintenance Cycle: 200~600 hours
Cleaning Method: Open the cleaning valve and refill with clean liquid
Exhaust Gas Temperature: ＜70℃▲ For reference only, subject to actual working conditions

■ Product Introduction

This equipment is made of 304 stainless steel with superior corrosion and high temperature resistance. Its compact and well-structured design makes it ideal for small-scale operation sites with limited installation space.

The tower is internally integrated with a spray system, packing layer and circulating water pump. Optimized gas-liquid contact and distribution deliver high purification efficiency. The unit provides dual functions of dust removal and absorption of soluble harmful gaseous substances, featuring stable operation and low energy consumption.

■ Working Principle

Dust-laden gas enters the equipment from the bottom and makes countercurrent contact with atomized droplets sprayed downward by the top spray system.Full mixing of gas and liquid phases enables efficient dust purification. Dust settles and separates with the circulating liquid, and the purified gas is discharged in compliance with emission standards.This equipment is recommended to be used together with an electrostatic fume purifier, achieving triple purification effects of smoke removal, dust removal and deodorization simultaneously.

■Characteristics

Purification Effect	Widely Applicable	Integrated Functions	Low Operating Consumables
Full countercurrent contact between gas and liquid enables efficient removal of dust and soluble harmful gases, delivering stable and controllable purification performance.	Full countercurrent contact of gas and liquid is fully achieved, delivering high removal efficiency for dust and soluble harmful gases with stable and controllable purification performance.	It simultaneously removes dust and absorbs soluble harmful substances. When combined with an electrostatic purifier, it expands functions to smoke and odor removal, providing a one-stop solution for multiple types of pollution problems.	Low energy consumption and stable operating conditions; dust settles and separates with circulating liquid. It features simple maintenance and operation, delivering superior cost-effectiveness for long-term use.

■ User Installation and Usage

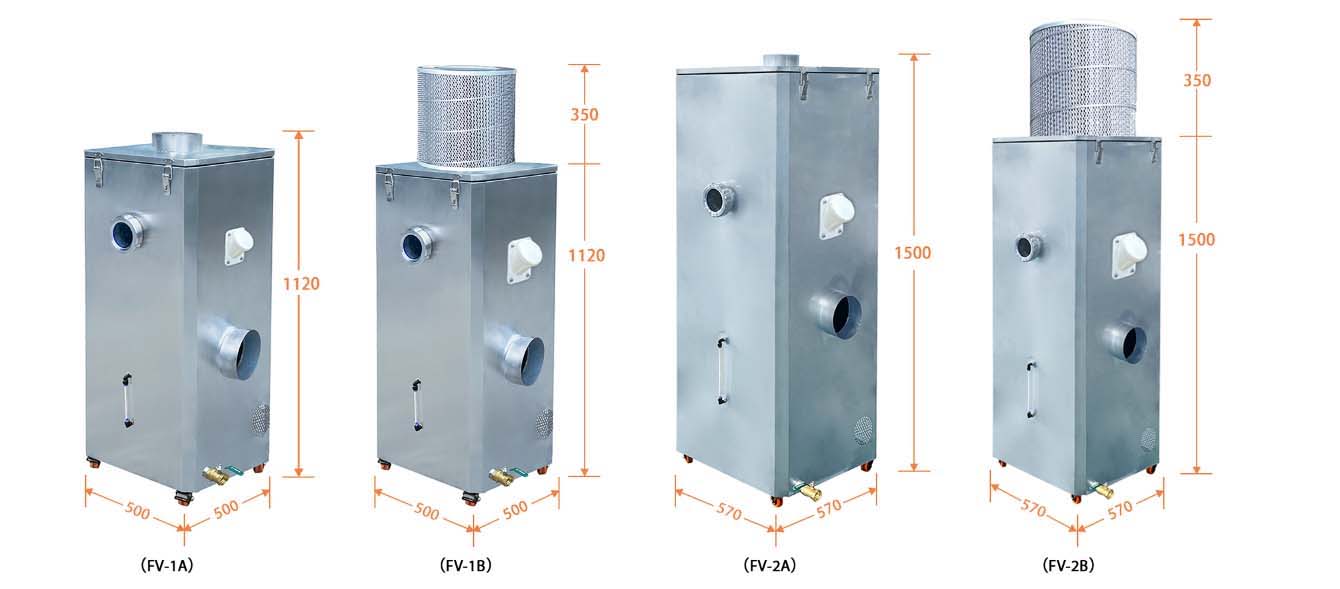

■ TECHNICAL PARAMETERS

Model	FV-1A	FV-2A	FV-1B	FV-2B
Power（W)	370	550	370	550
Voltage（V）	220/380	220/380	220/380	220/380
Outlet diameter（mm）	≤150	≤150	≤150	≤150
Measure（LWH)	5005001120	5705701500	5005001470	5705701850
Performance consumables	Dust Filtration and Purification

Note: Our company continuously studies and improves the product specifications and designs. If there are any changes to the above specifications, we will not provide any further notice.
